Rodec MX Modular Base Console – Thomann Ireland

Configurable mixing console for studio and performance applications

Empty housing - requires additional 500 format modules and mono or stereo fader modules for full functionality

• Flexible routing enables use in various application areas
• 10 500-format slots: Slots 1-8 are permanently routed to channels 1-8, slots 9-10 are switchable to master or bus1
• 18-channel AD/DA converter with USB-C interface and AKM ADCs and ESS DACs
• Inputs (1-8) per channel switchable between analogue line signals and USB audio
• Bypass for channels 1-8 individually switchable - bypasses the 500 format slot and routes the signal directly from the input to the fader module
• Insert switchable per channel (1-8)
• Stereo insert on the master bus and the buses (1 and 2)
• X/Y crossfader for channels 1-8
• Channels 9-16 are grouped into four stereo pairs
• On button per stereo pair (9-16) activates routing to the master bus
• Volume control per stereo pair (9-16)
• Programmable mute and solo buttons
• LED VU meter
• 2 Stereo AUX sends and 2 stereo BUS routings per channel
• 2 Stereo AUX returns
• 3 Analogue summator buses including the master bus
• Up to 26 analogue summing channels: 16 USB or analogue inputs, external stereo input, 2 stereo AUX returns and 2 stereo BUS returns
• Direct Out per channel (after the 500 module)

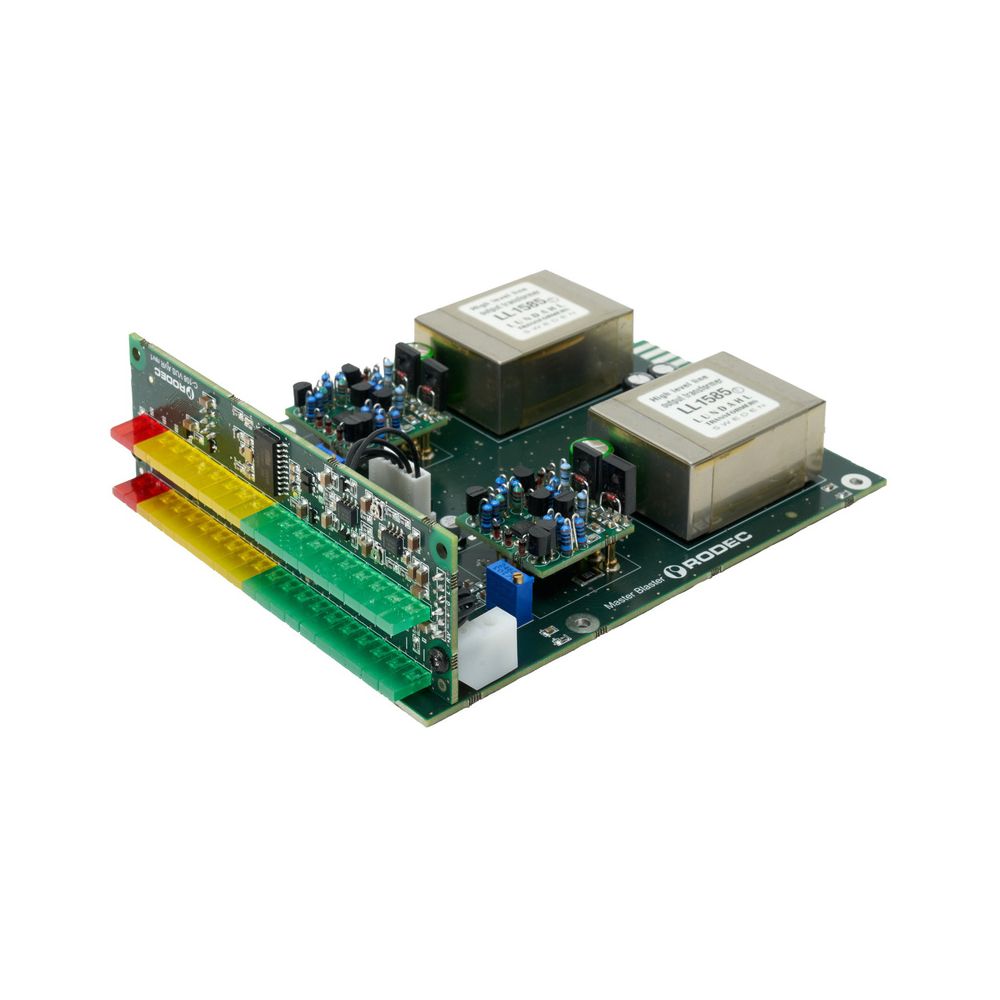

• Balanced high-end master output with discrete operational amplifiers and Lundahl transformers with +28 dBu headroom
• Monitor output
• Headphone output with individual level control and cue/mix control
• CV input for all 500 slots - requires compatible 500 modules such as the M-104 Dynamic Filter Module
• 19" Rack mounting format
• Dimensions (W x D x H): 451 x 625 x 285 mm
• Weight: 9.9 kg
