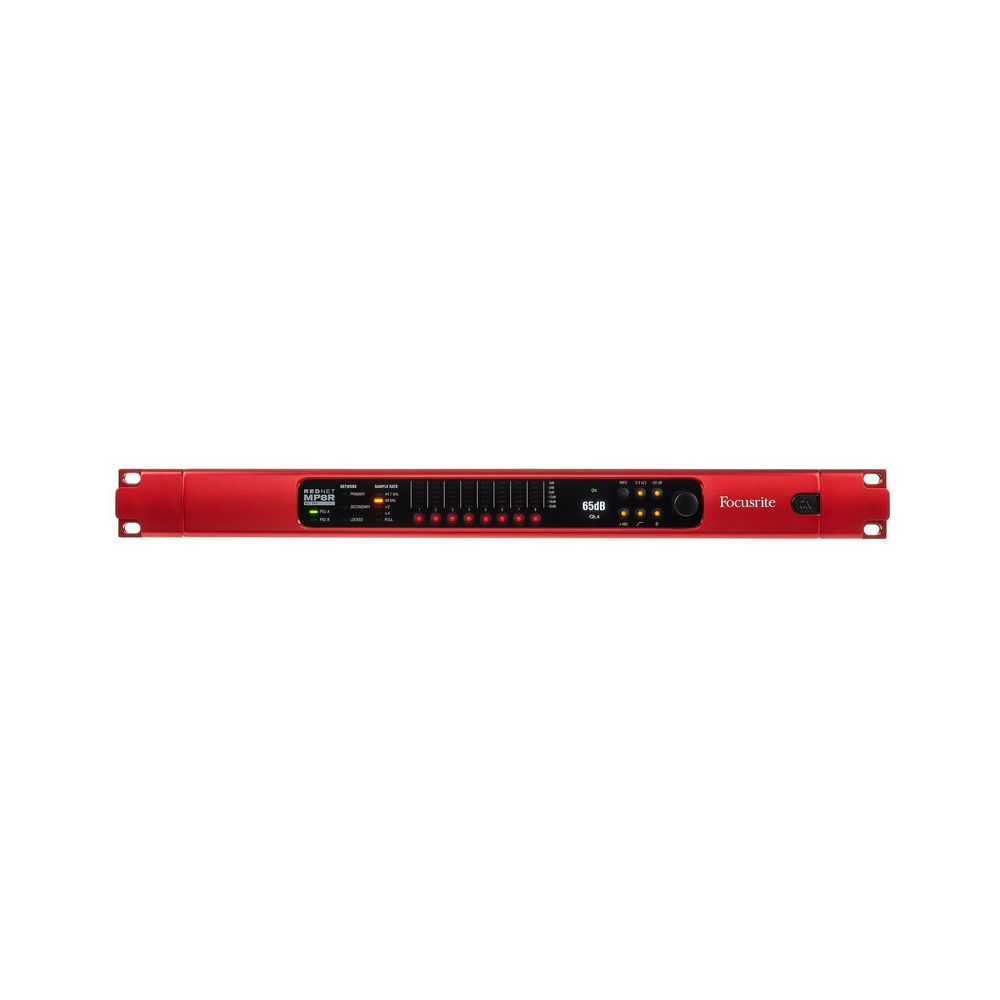

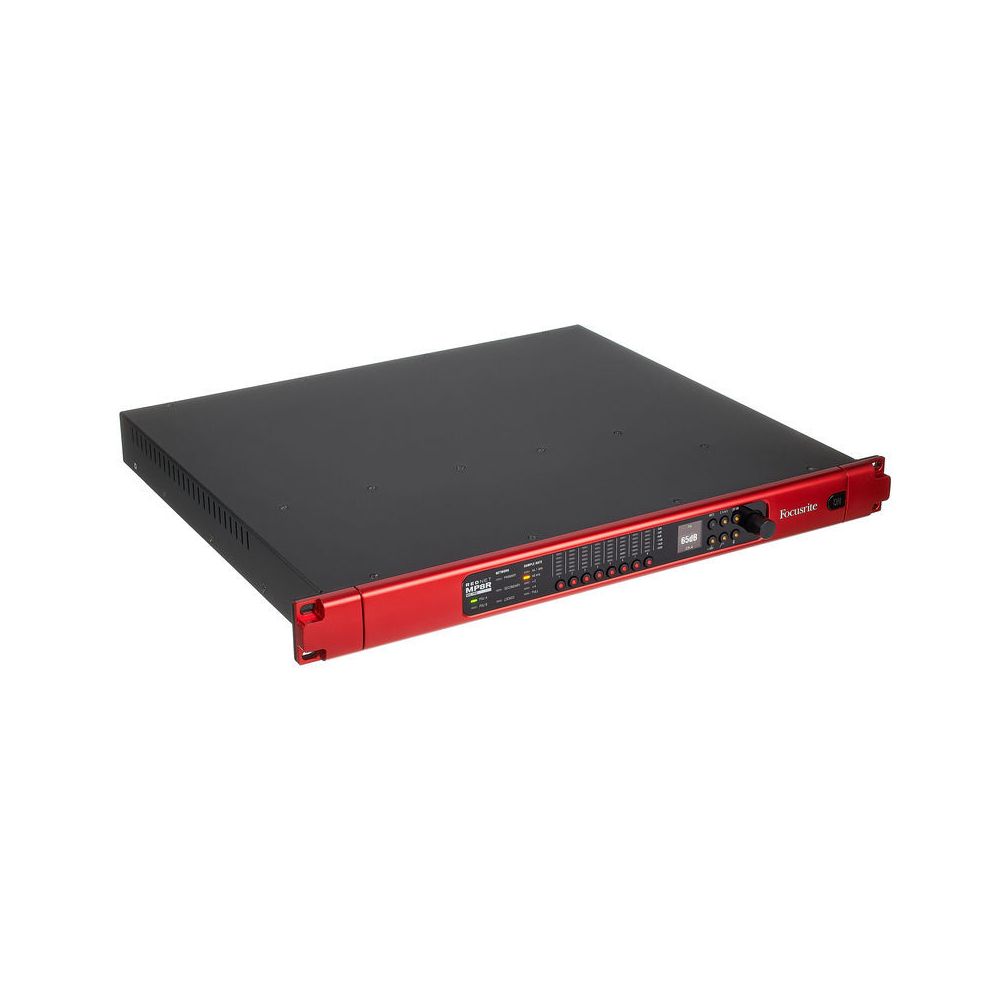

Focusrite RedNet MP8R – Thomann Ireland
Quantity
-
Detail
ADC with 8 Focusrite Mic Preamps for Dante Audio-over-IP Networks
- Up to 24-bit / 192 kHz
- AES67 Compliant
- Gain range: 10 dB to 65 dB in 1 dB increments
- Frequency range: 20 - 40,000 Hz (± 0.1dB)
- 20 dB pad
- 48V Phantom power
- HP Filter and phase reverse switchable per channel
- Remote controllable functions for Yamaha CL and QL consoles: Gain, phantom power and HP filters

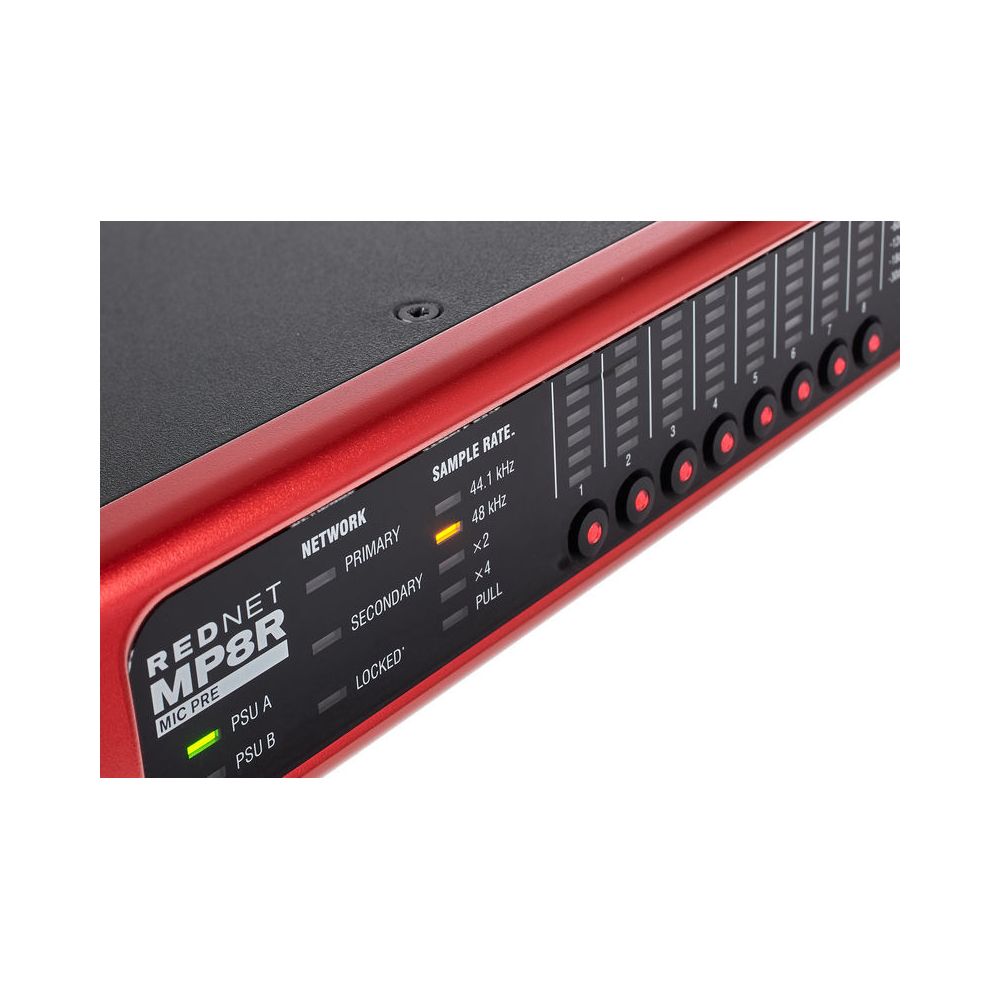

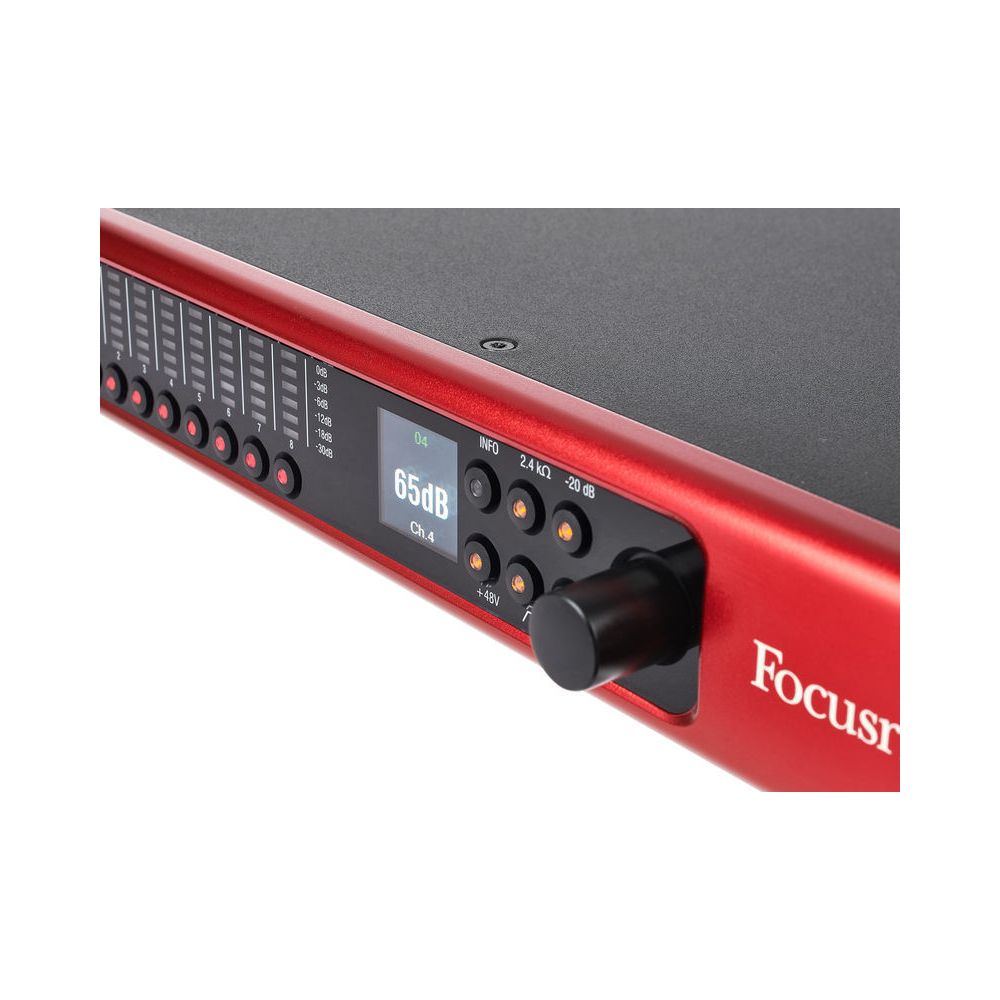

- LED level meter and OLED display
- Two integrated power supplies for redundant power supply
- Type: 19" 1U
- Dimensions: 48.2 x 4.45 x 39.4 cm (W x H x D)
- Weight: 5.75 kg

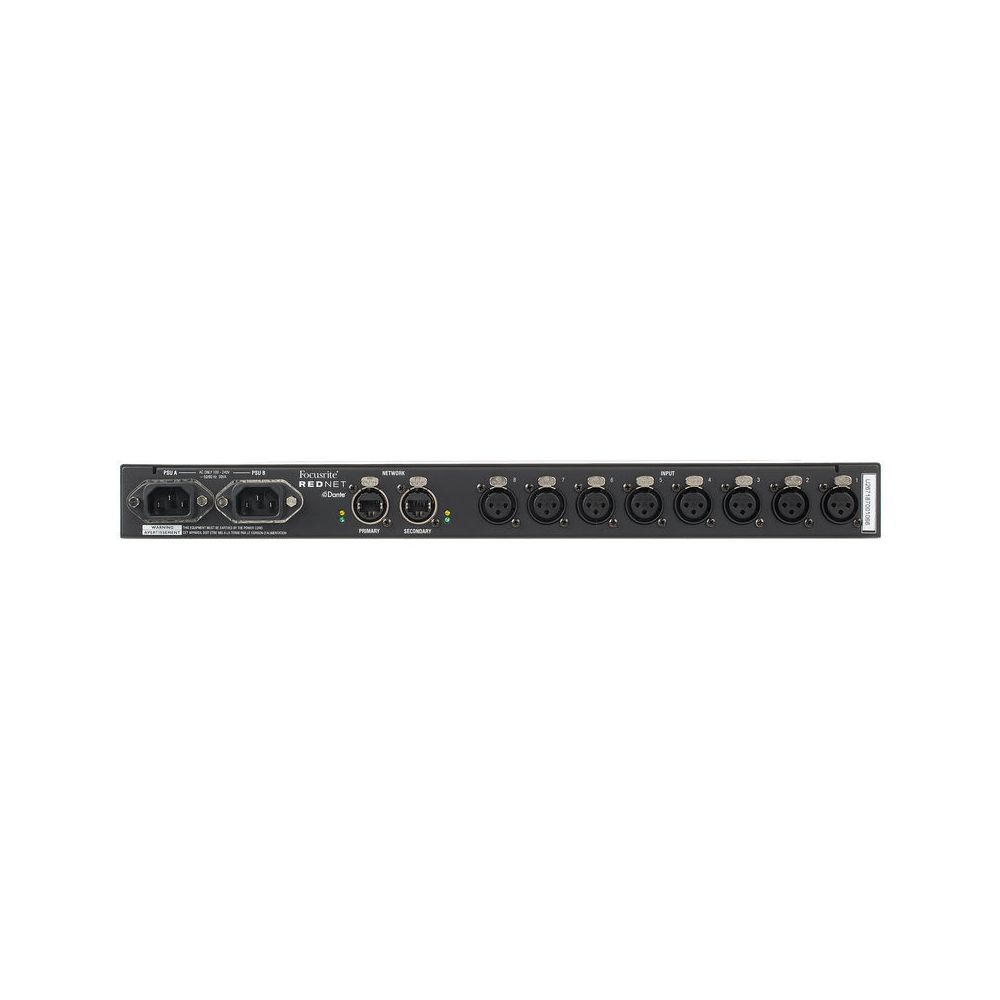

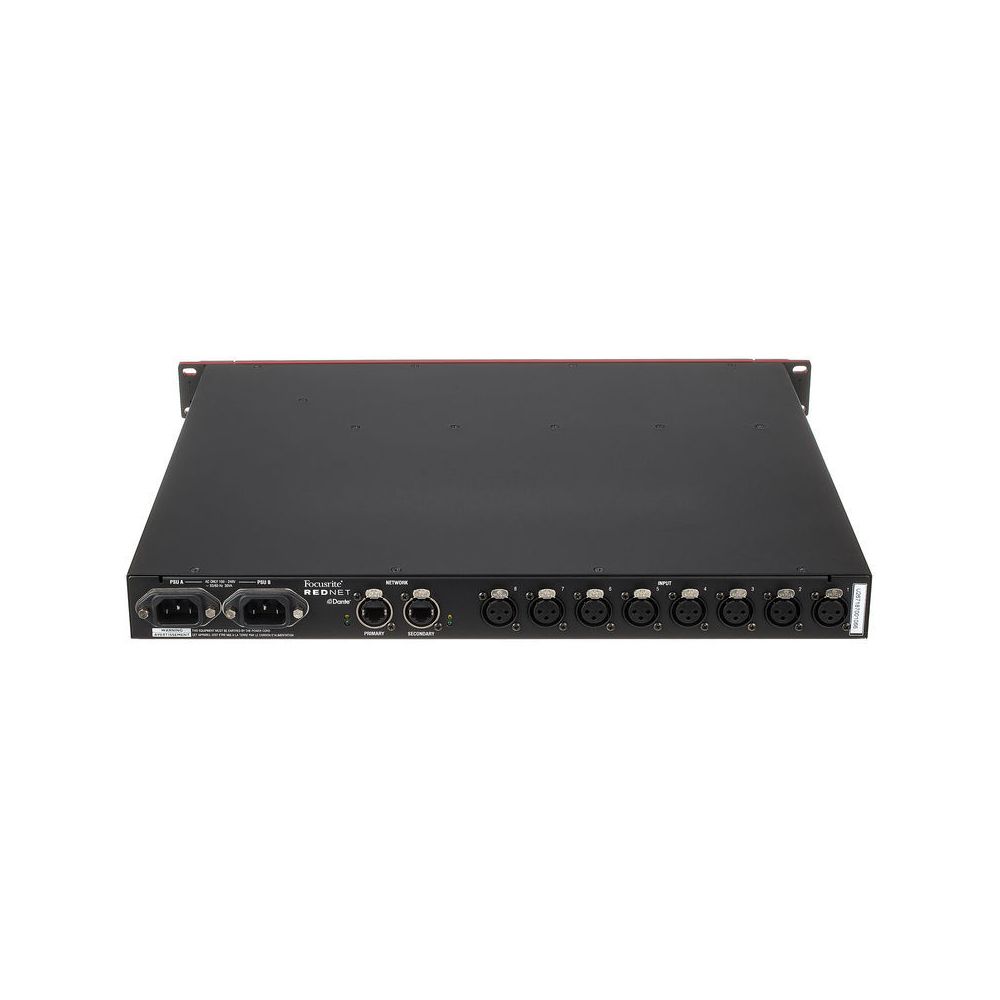

Connections:
- 8x XLR input
- 2x EtherCON NE8FBH-S (compatible with RJ45) for redundant network functionality
30-Day Money-Back Guarantee3-Year Thomann Warranty-
Available since January 2019
-
Item number 455805
-
Sales Unit 1 piece(s)
-
Amount Of Channels 8
-
AD Conversion Yes
-
DA Conversion No
-
Max. Resolution 24 bit
-
Max. sampling rate 192 kHz
-
S/PDIF Connecor No
-
AES/EBU Connector No
-
ADAT No
-
Word clock No
-
Number of analog inputs 8
-
Number of Analog Outputs 0
-
Headphone connection No
-
Special Features Dante Ethernet Connection
