Tascam MM
Quantity
-
Detail
4-Channel Analogue/Dante Converter
- With DSP mixer
- Max. 24-bit/96 kHz
- Transmission protocol: Dante
- 4 Mic/Line inputs
- Switchable +48 V phantom power
- Euroblock connectors for fixed installations
- Flexible routing via the application "Dante Controller"
- AES67 support

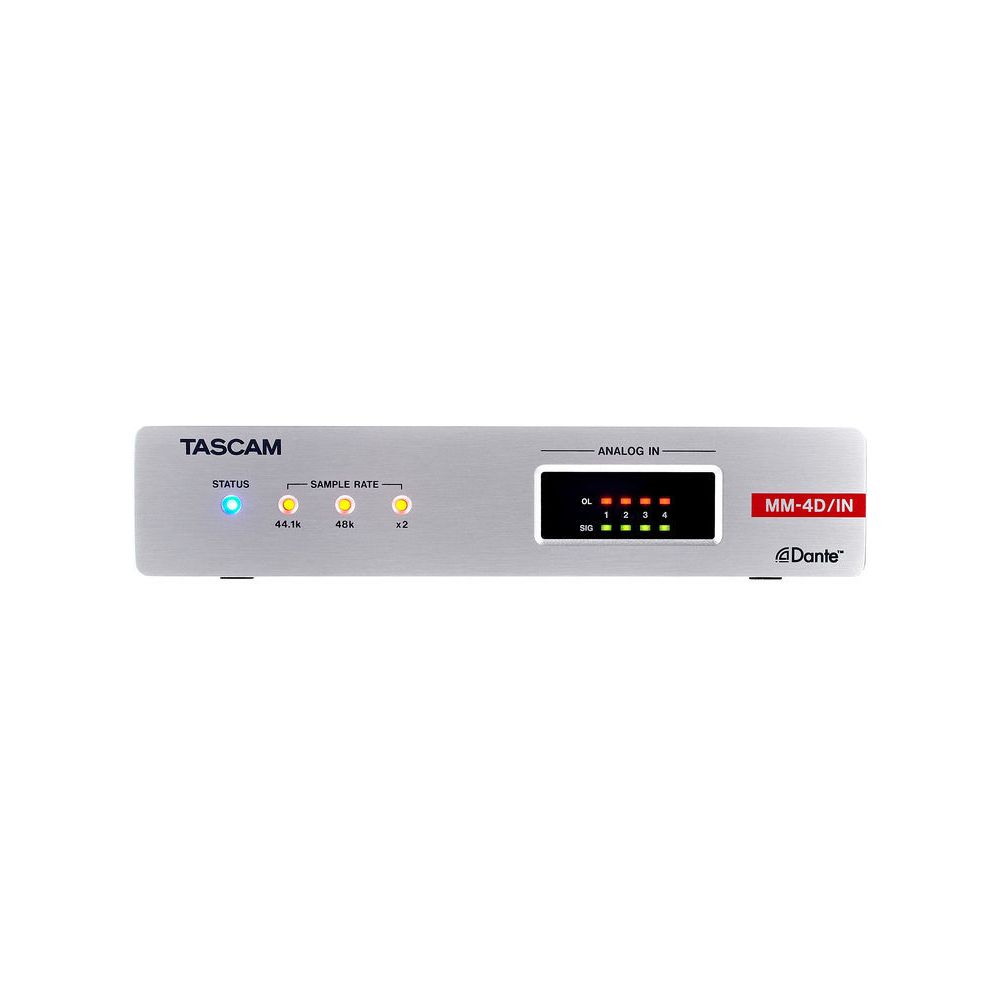

- LED for operating status and current sampling rate
- Signal and overload indicators for analogue input signals
- Inputs can be individually muted via GPI

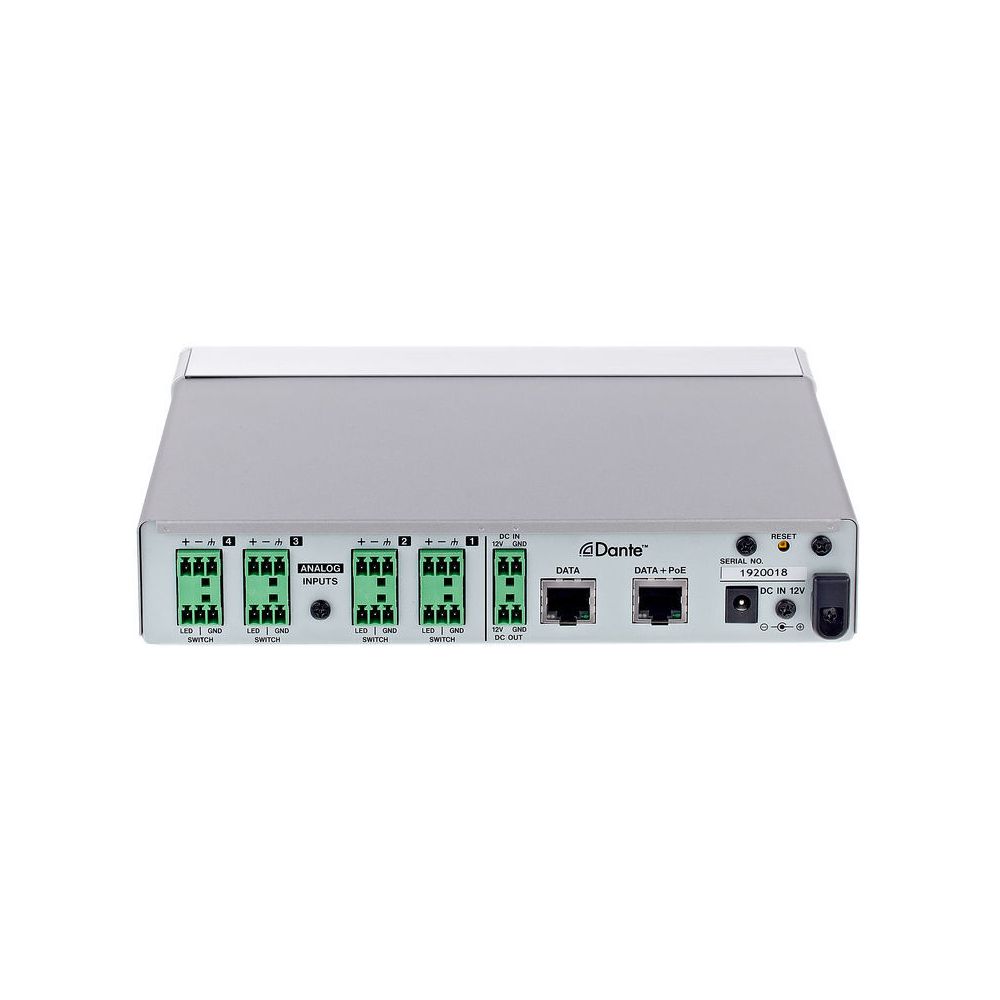

- Connections: Balanced Euroblock connectors, pitch: 3.81 mm , 2x RJ45 Ethernet 1000BASE-T
- Powered via PoE (Power-over-Ethernet) or a Tascam PS-P 51220E power supply (not included)
- Dimensions: 214 x 45 x 136 mm
- Weight: 0.885 kg

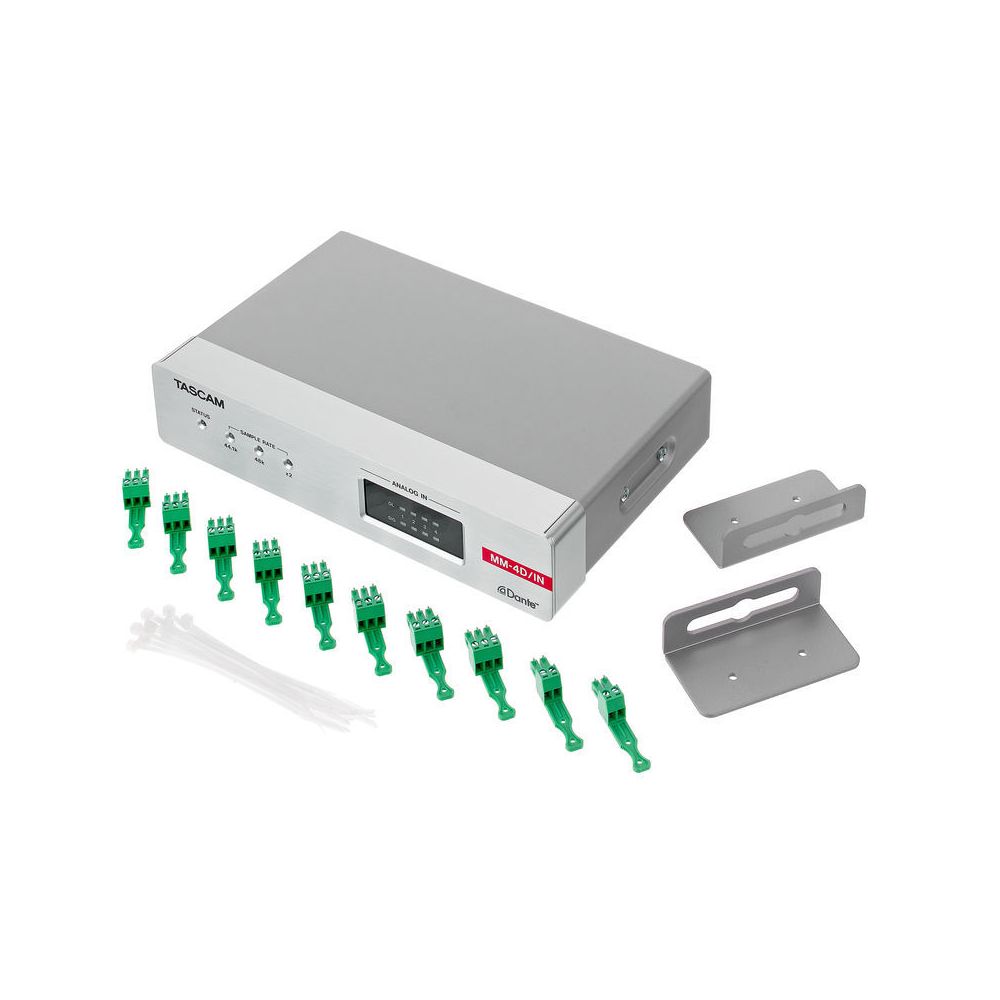

- Includes a mounting bracket for mounting the device, for example, to a table top
30-Day Money-Back Guarantee3-Year Thomann Warranty-
Available since September 2020
-
Item number 503129
-
Sales Unit 1 piece(s)
-
Amount Of Channels 4
-
AD Conversion Yes
-
DA Conversion No
-
Max. Resolution 24 bit
-
Max. sampling rate 96 kHz
-
S/PDIF Connecor No
-
AES/EBU Connector No
-
ADAT No
-
Word clock No
-
Number of analog inputs 4
-
Number of Analog Outputs 0
-
Headphone connection No
-
Special Features Dante
