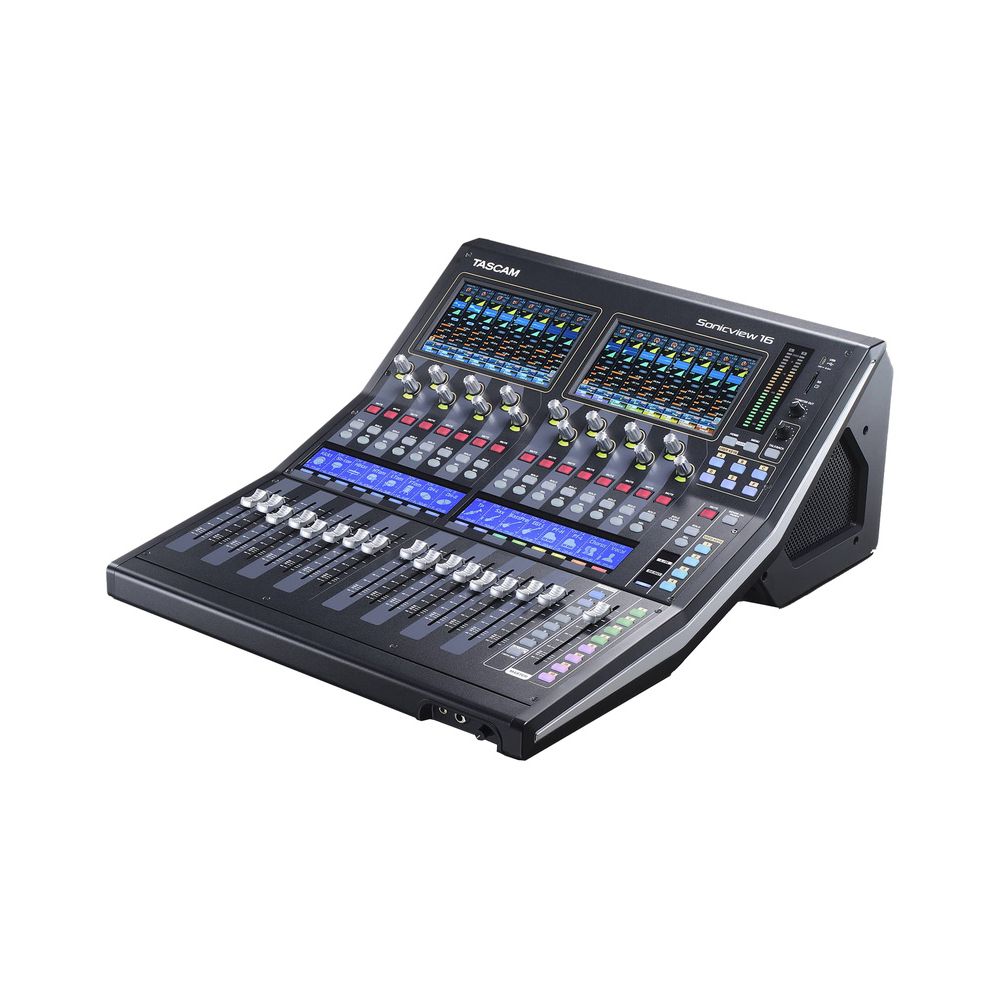

Digital Mixer

• AD/DA conversion: 32 bit / 96 kHz
• Tascam HDIA microphone preamplifier (High-Definition Instrumentation Architecture)
• FPGA mixing engine with 54-bit floating-point processing and 96 kHz sampling rate
• 44 Input channels (40 mono, 2 stereo)
• 22 Flexible output busses + stereo sum with 31-band graphic EQ
• Visual Interactive Ergonomic Workflow (VIEW) interface provides intuitive operation with three view modes
• Multiple simultaneous views via two 7-inch colour touchscreens
• Latency: 2 × Fs (20.8 µs) in mixing engine, 0.51 ms analogue-to-analogue
• Integrated Dante interface with 64 inputs and outputs (supports redundancy, AES67, DDM and SMPTE 2110)
• USB audio interface with 32 inputs and outputs
• Internal two-track recording/playback to SD card or USB drive
• Four multi-effects processors
• 16 + 1 100 mm motorised faders
• 16 Encoders with colour LEDs
• 16 LC displays with colour LEDs for channel names as well as displays for input level and dynamic level reduction
• 18 Individually assignable buttons
• Seven user-defined fader levels and eight DCA groups
• Gigabit Ethernet connection (1000 BaseT)
• Remote control and offline editing via Tascam Sonicview software for Windows, macOS and iOS
• Two Tascam expansion slots (expansion cards available for 32-track SDXC recorders as well as MADI, AES/EBU and analogue signals - not included)
• Power switch with protection
• Dimensions (W x H x D): 472 x 228.1 x 554.4 mm
• Weight: 13 kg

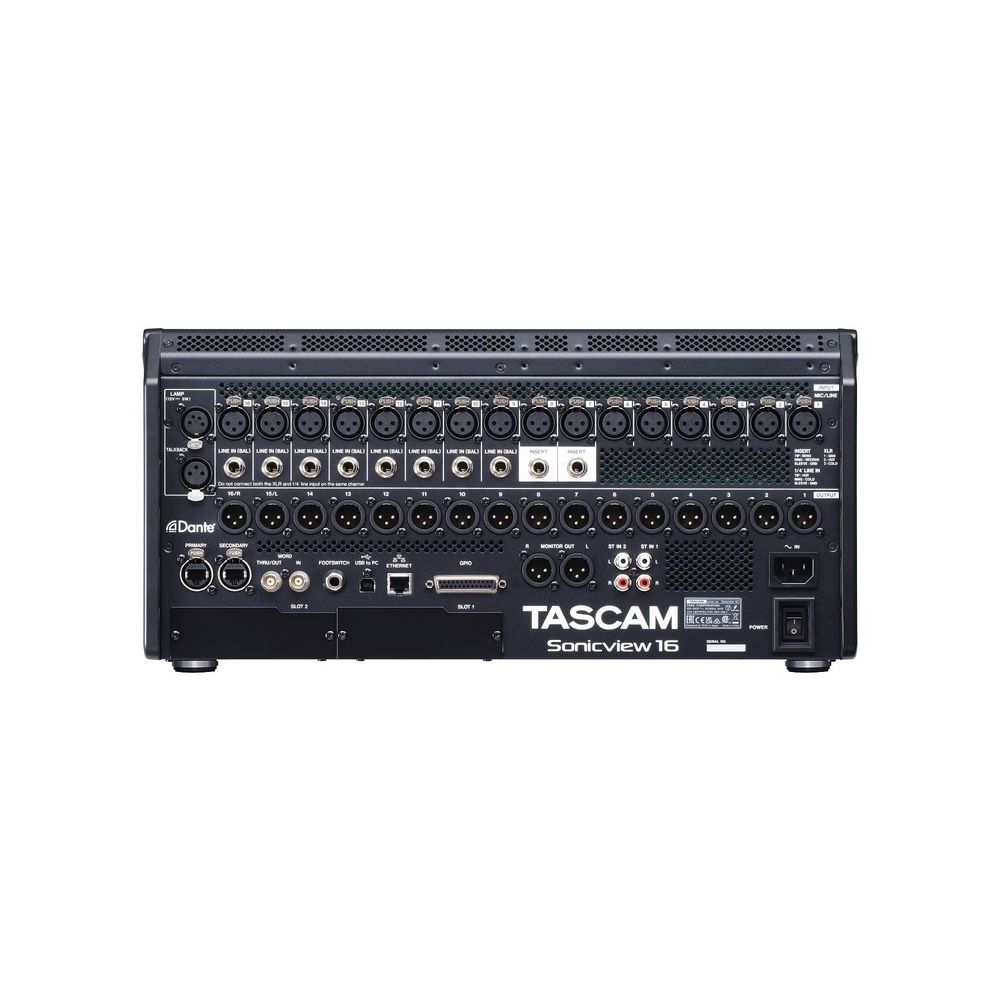

Connections:

• 16x Balanced 3-pin XLR mic/line input
• 8x Balanced 6.3 mm jack line input
• Max. input level: +32 dBu
• 2x 6.3 mm jack insert
• 3-Pole XLR talkback input
• 2x RCA stereo inputs L/R
• 16x Balanced 3-pole XLR line output
• 6.3 mm jack stereo headphone output
• 3.5 mm jack stereo headphone output
• 2x 3-pole XLR monitor output
• Max. output level: +24 dBu
• 4-pole XLR lamp connection
• 6.3 mm jack Footswitch connector
• BNC socket Wordclock-In
• BNC socket Wordclock-Out/Thru
• 2x USB connector (type-B and type-C)
• GPIO with eight inputs/outputs via Sub-D25 connector
