Stairville LED PAR56 Starter Bundle S – Thomann Ireland

Bundle offer comprising

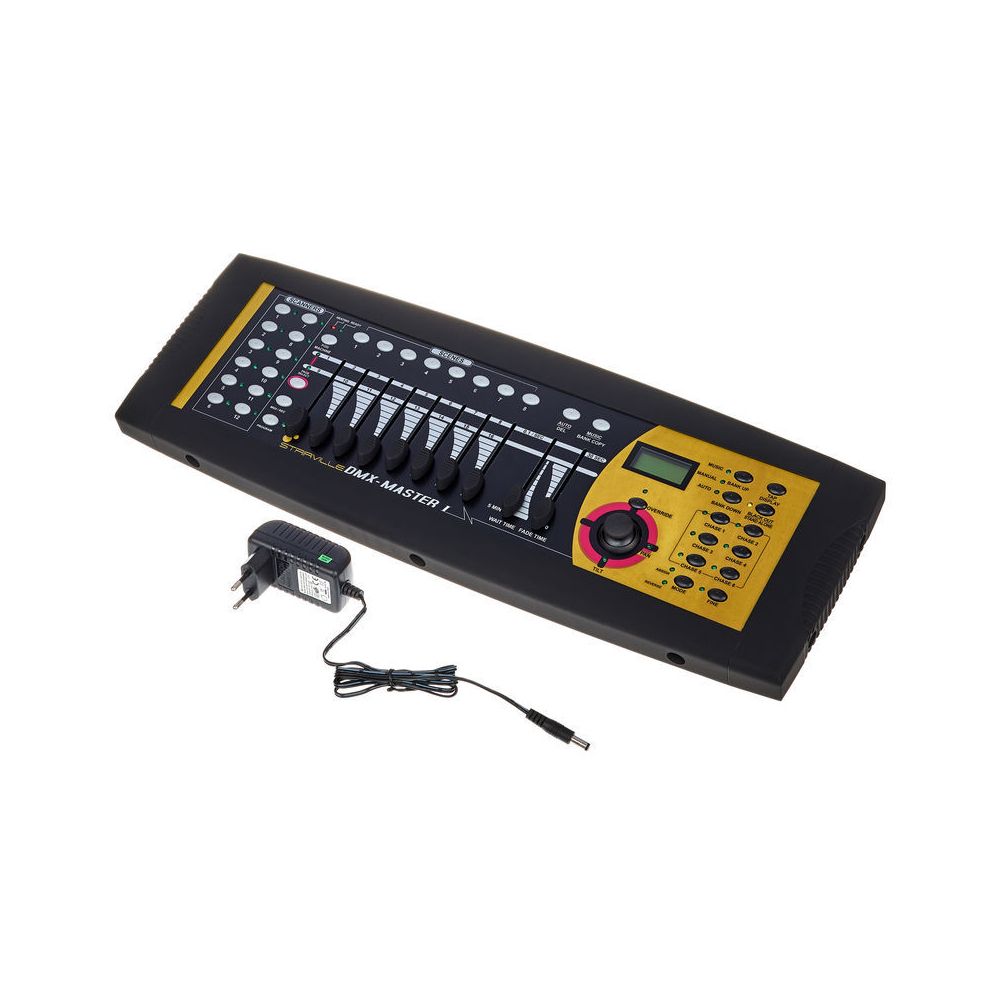

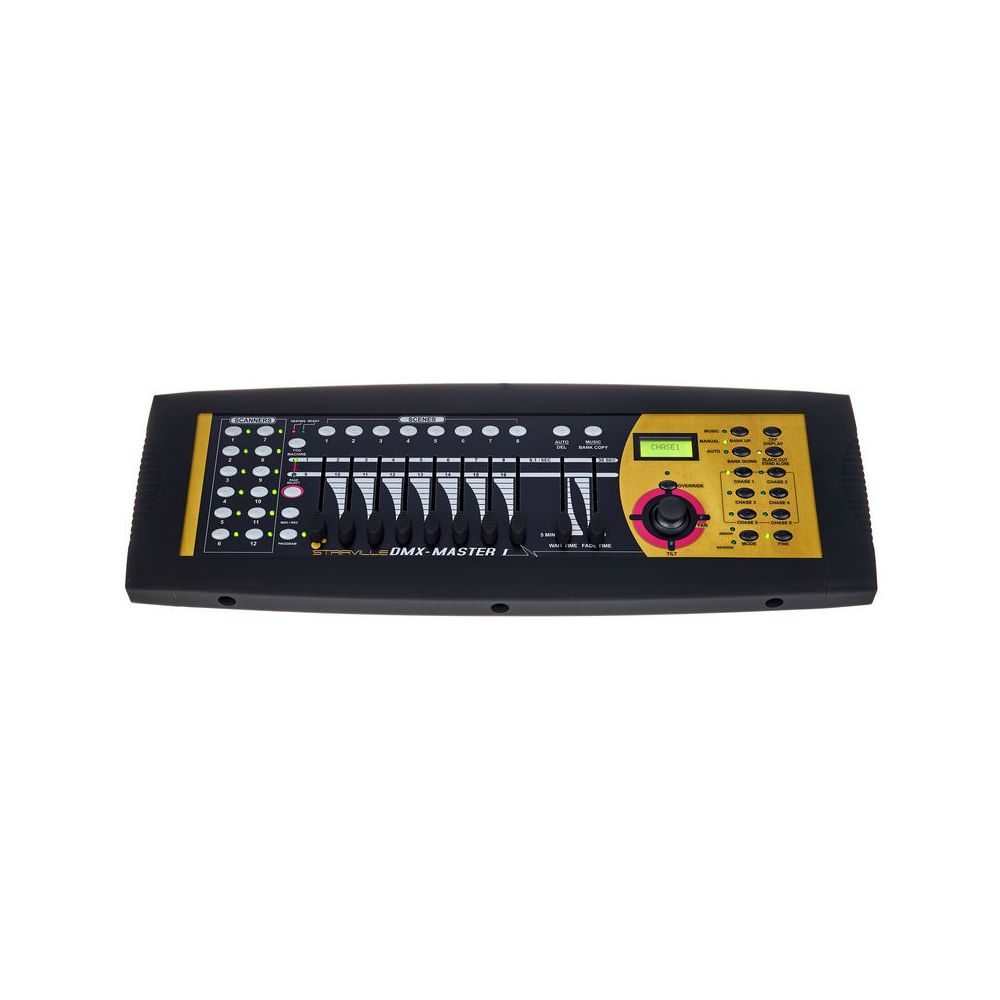

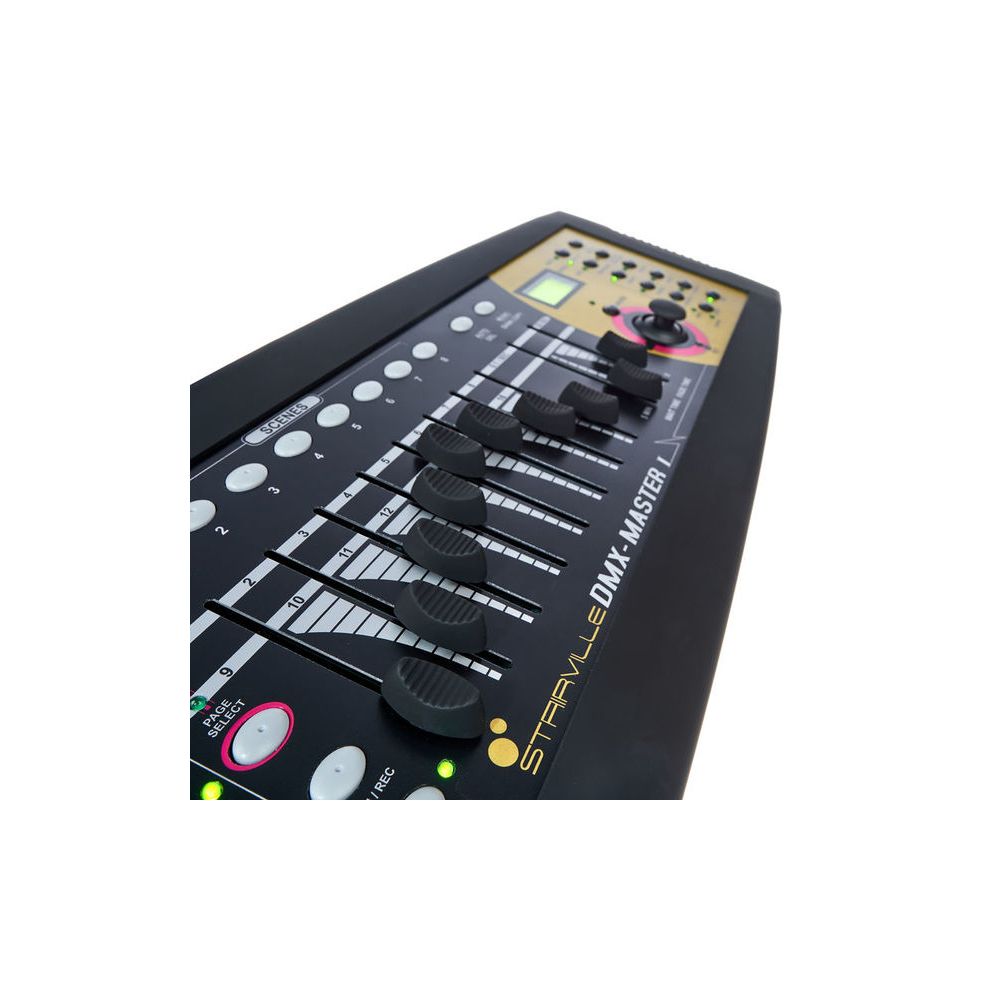

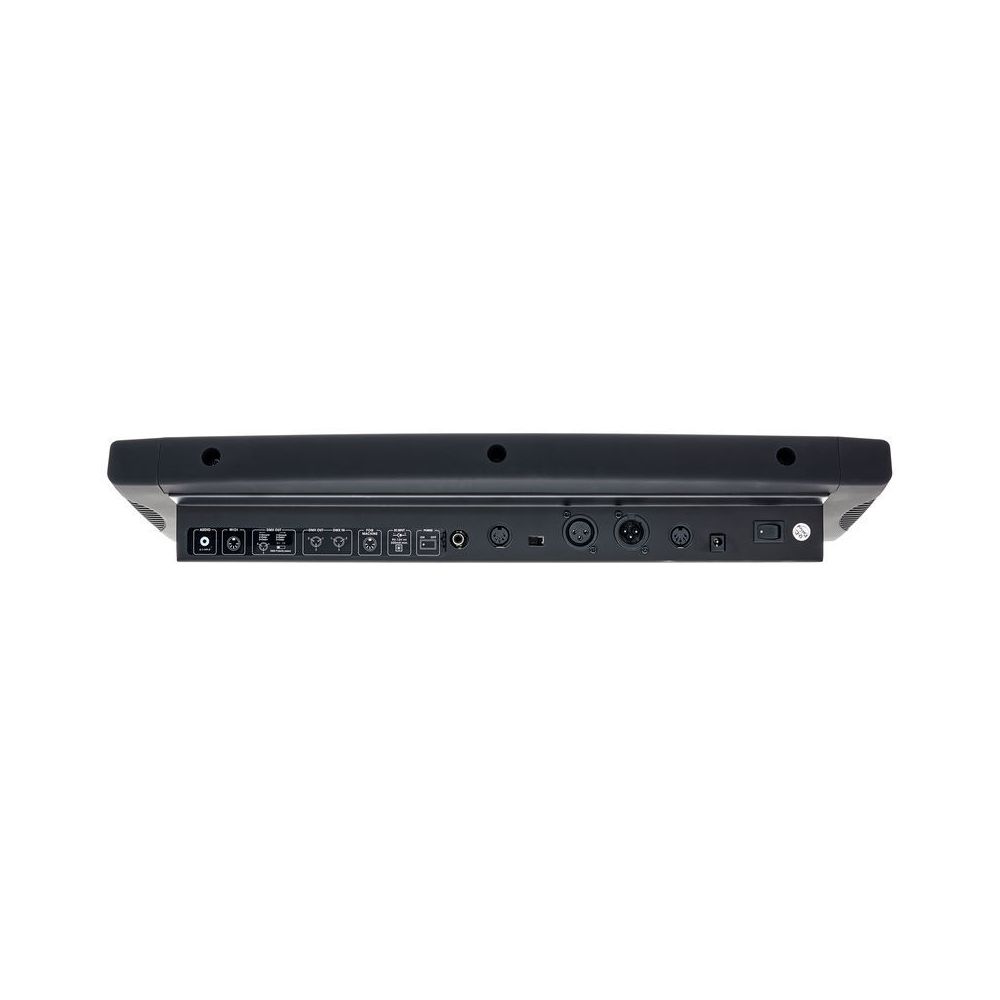

Stairville DMX-Master I

DMX Controller

The Stairville DMX-Master can be operated from a maximum of 12 devices with up to 16 DMX channels. It is easy to handle, which makes it ideal for the beginners in the area of scanner and moving lights programming. The 19" device with 3 rack units is suitable for many applications.

• Operating up to a maximum of 12 devices with up to 16 DMX channels (192 DMX channels)
• 30 Banks of 8 freely programmable scenes
• 240 Programmable scenes
• 6 Chases with up to 240 scenes
• DMX channel adjusting over 8 faders with bank switching
• Scene speed adjustable over the faders
• Built-in microphone for Music triggering
• Continuous Fade Time setting (0-30 s) via sliders
• Master Black Out
• Manual override of scenes in process
• Size: 19" / 3 U, Depth: 65 mm
• Dimensions with Frame: 53 x 19 x 9.2 cm
• Weight: 2.3 kg

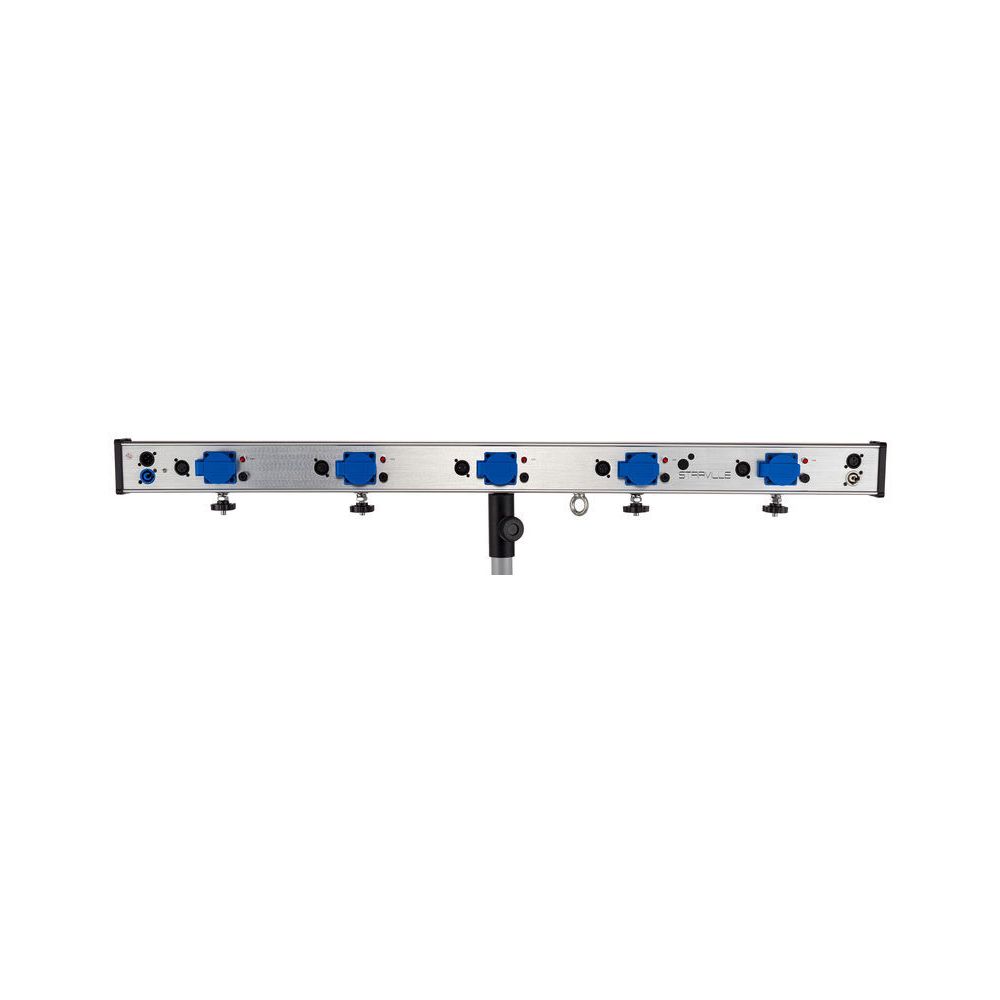

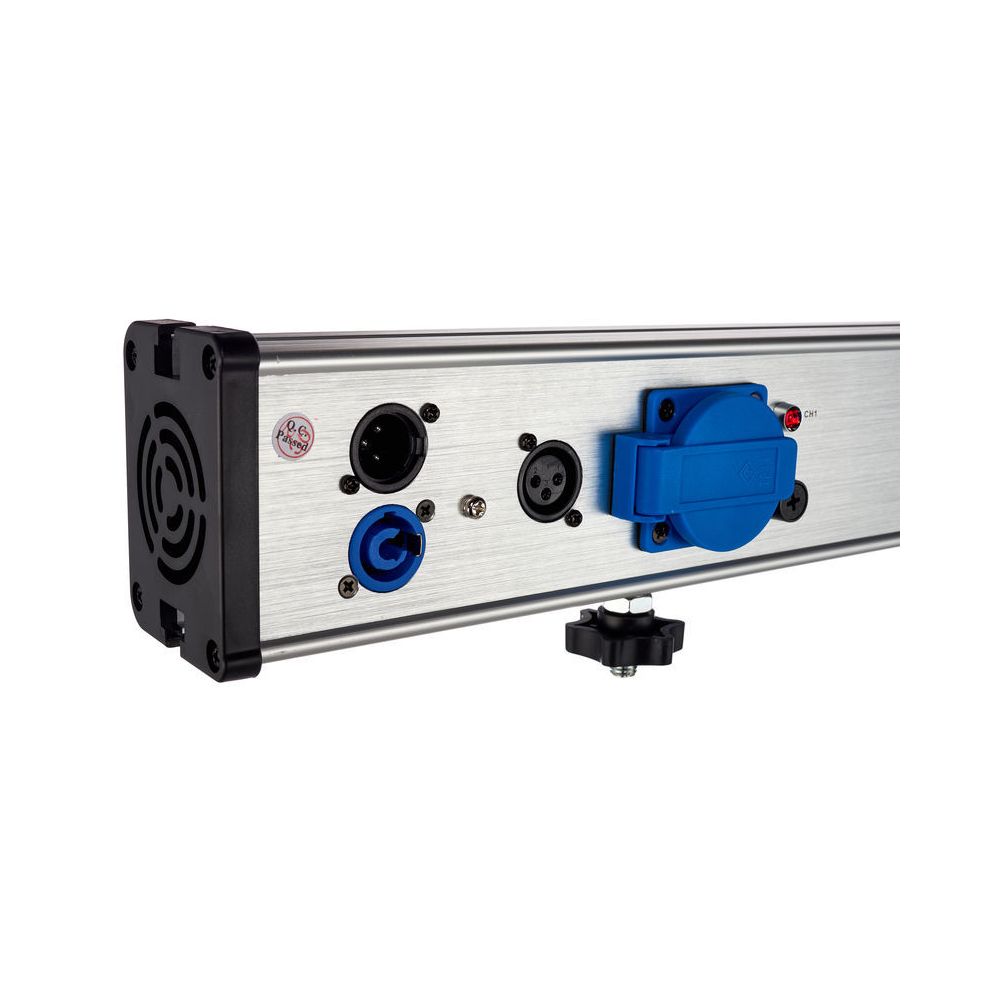

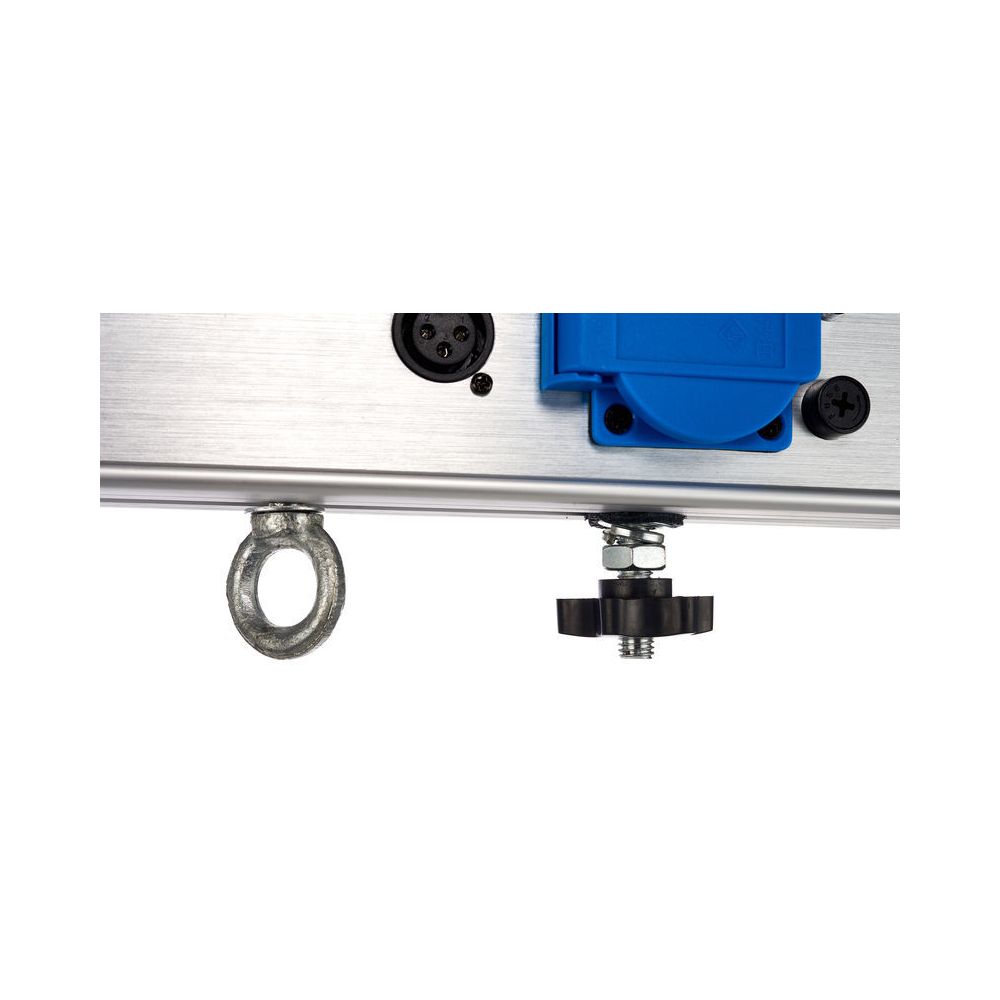

Stairville LED Power & DMX Bar

T-Bar Truss

• For LED-PARs or other DMX spotlights
• 5 Protective contact sockets on the front
• 5 DMX outlets on the front
• DMX in- and output on the front
• Power Twist input on the side
• Includes 4 attachment screws for spotlights and a stand mount flange for easy setup on a speaker or lighting tripod
• Power Twist cable included in delivery (corresponding replacement: Article Nr 187464)
• Dimensions (L x H x D): 121 x 8 x 6 cm

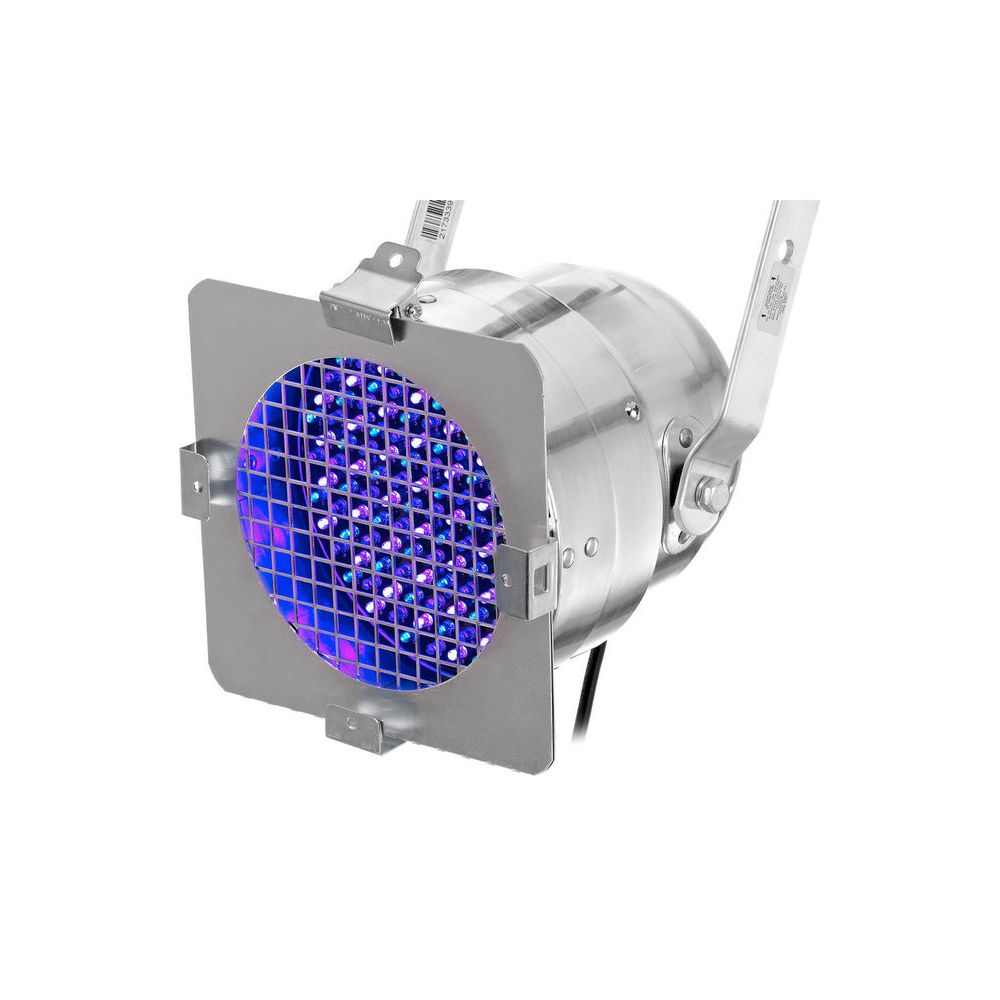

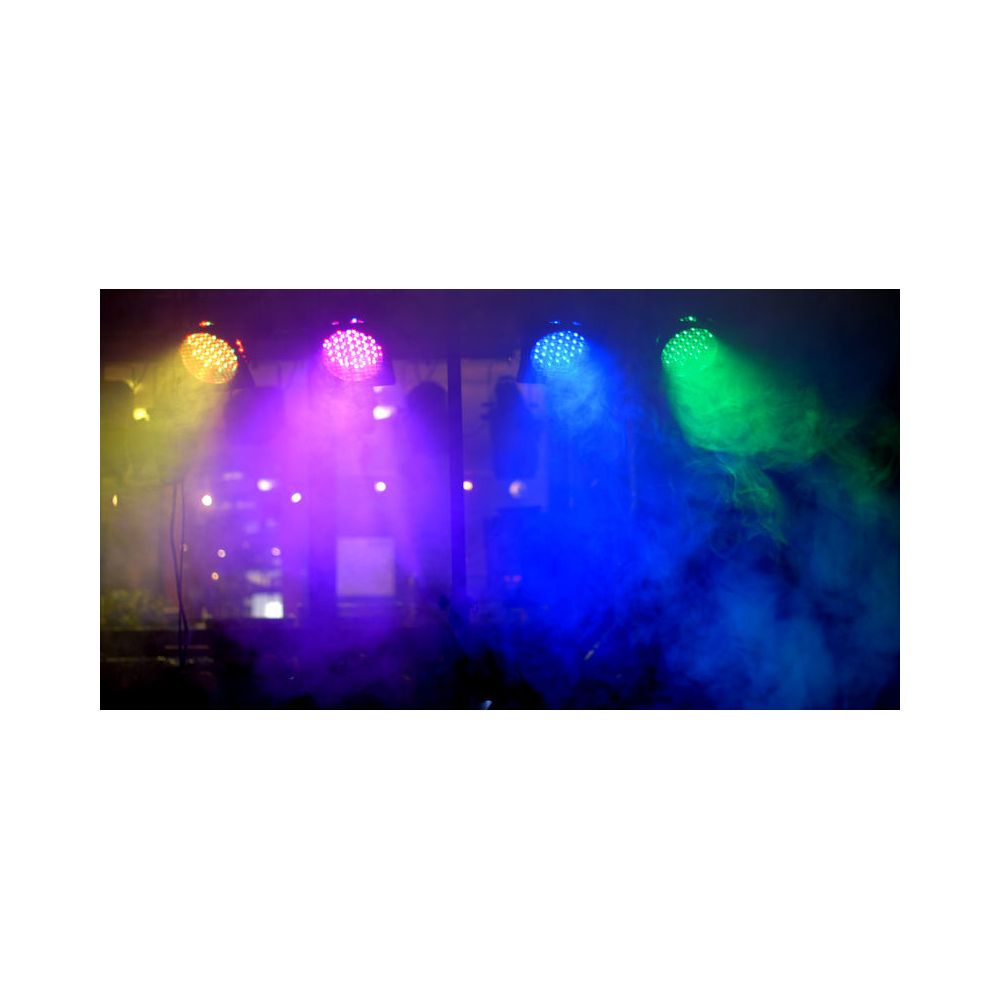

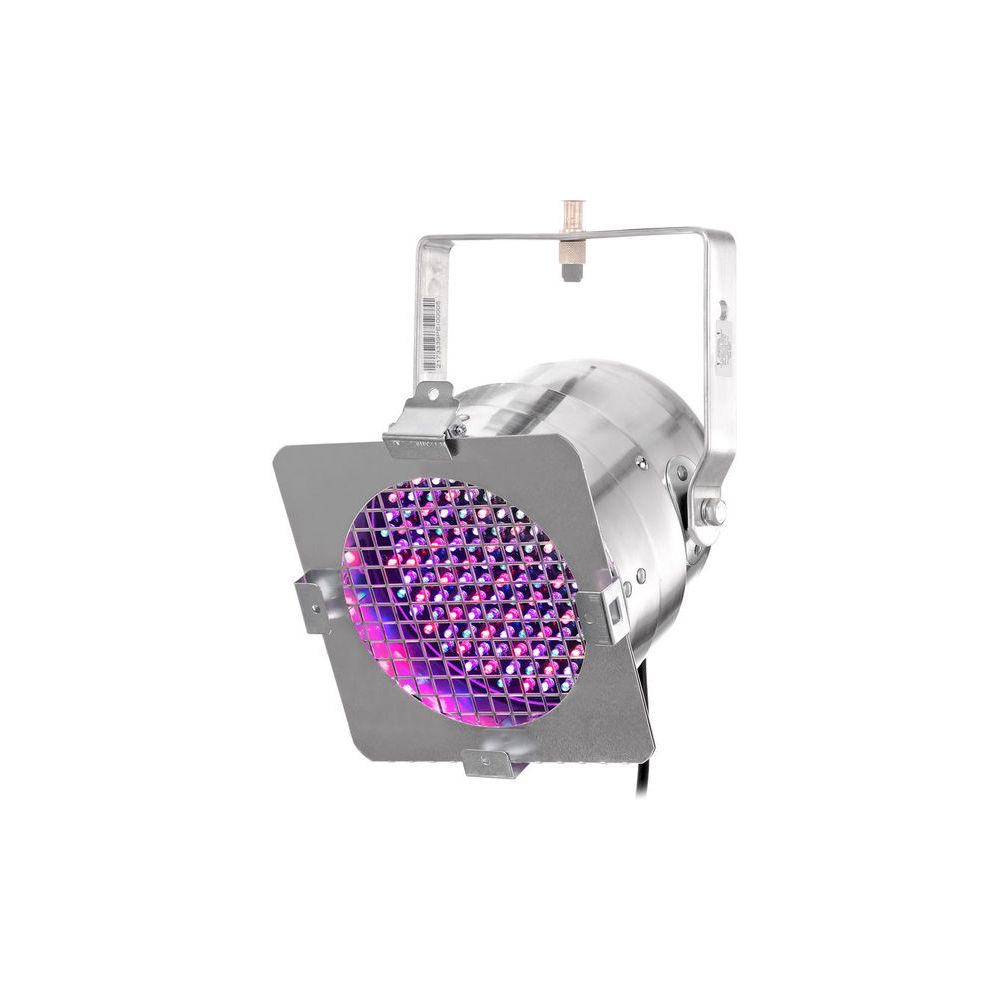

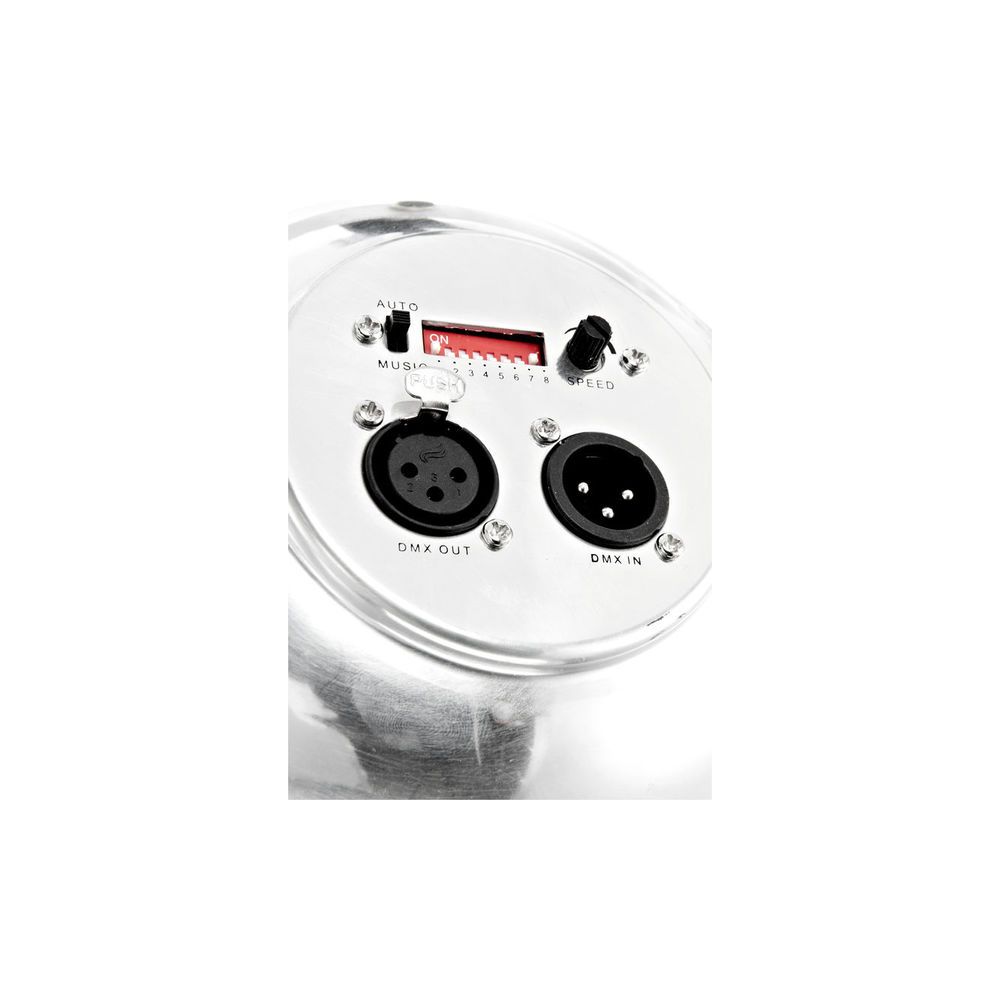

4x Stairville LED PAR 56 Pol. 151 LEDs RGB

LED Spotlight

• PARcan with RGB colour mixing function
• The use of LEDs results in extremely long life and very low power consumption
• Contains 151 LEDs: 51 red, 49 green and 51 blue
• The unit is controlled by 5 DMX channels (highest start address: 123) RGB, pre-programmed chases and colours, automatically via integrated processor or internal microphone
• Power consumption: max. 16 Watt
• Beam angle: approx. 45°

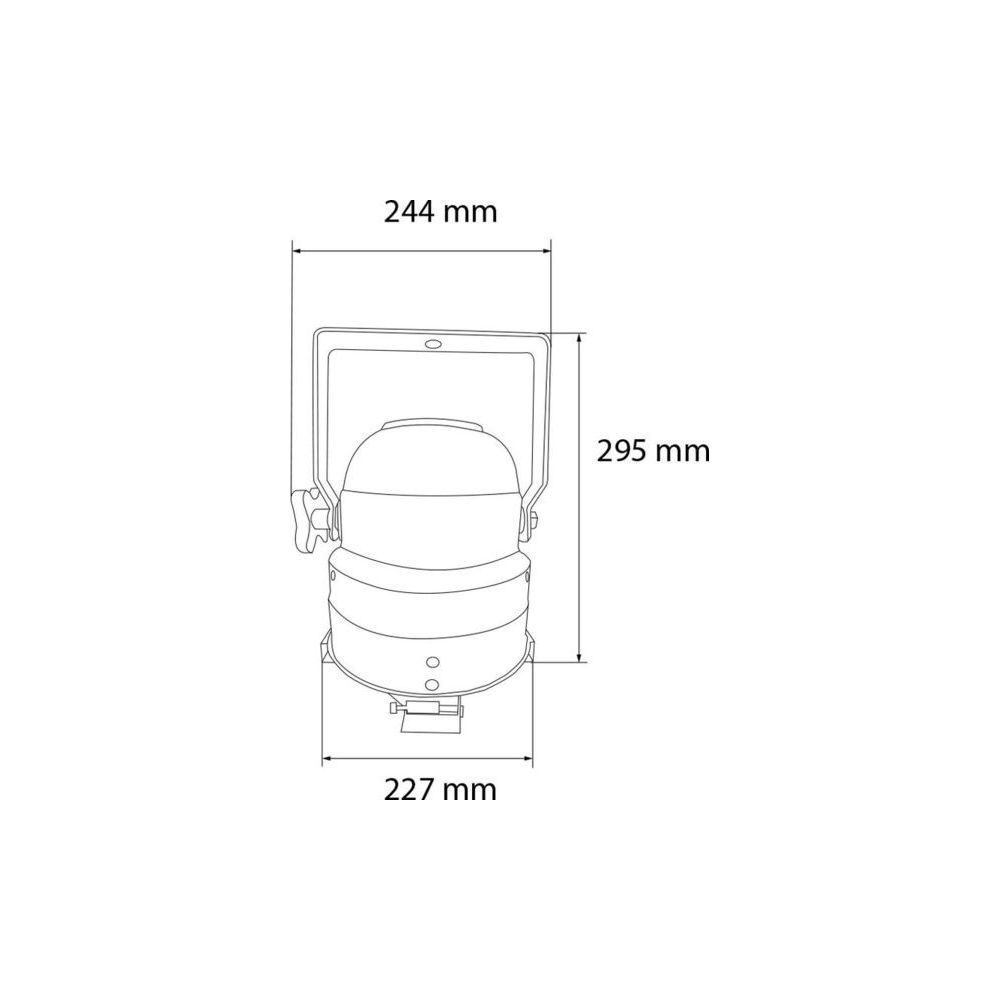

• Dimensions: 295 x 244 x 227 mm
• Weight: 1.4 kg

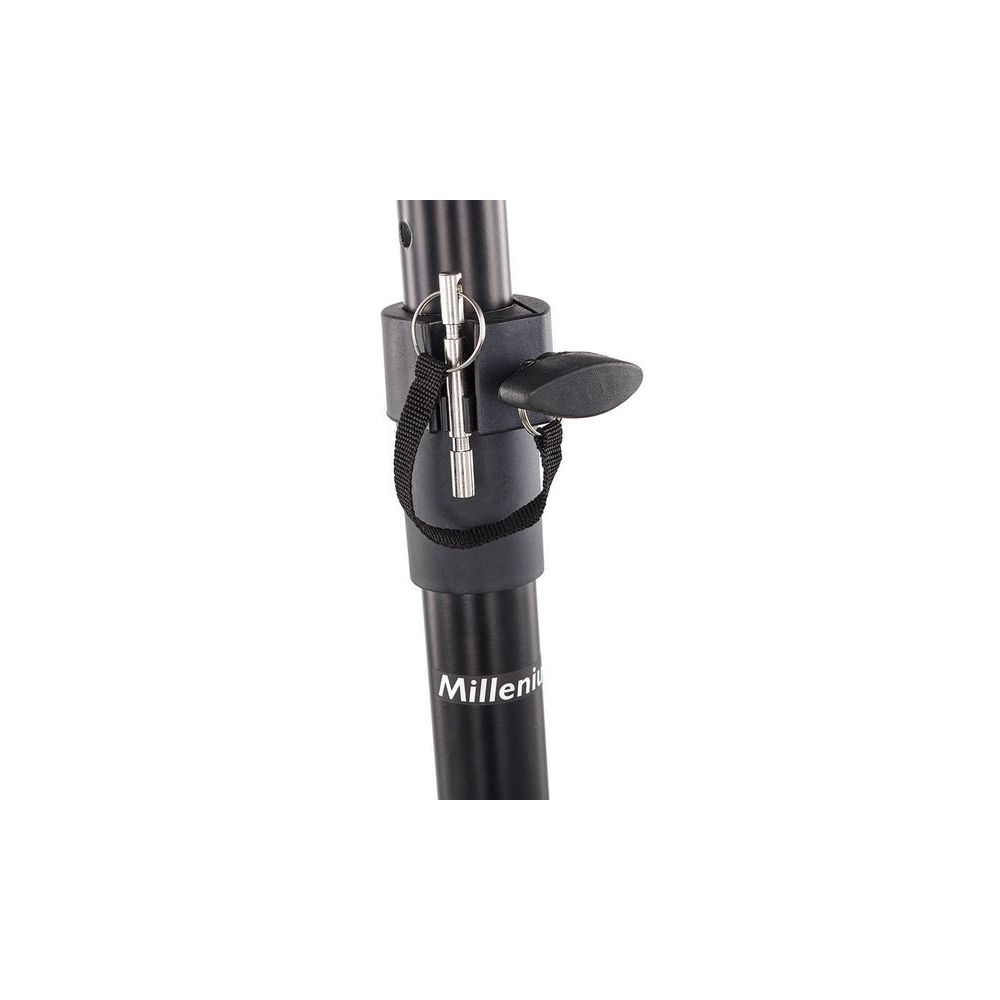

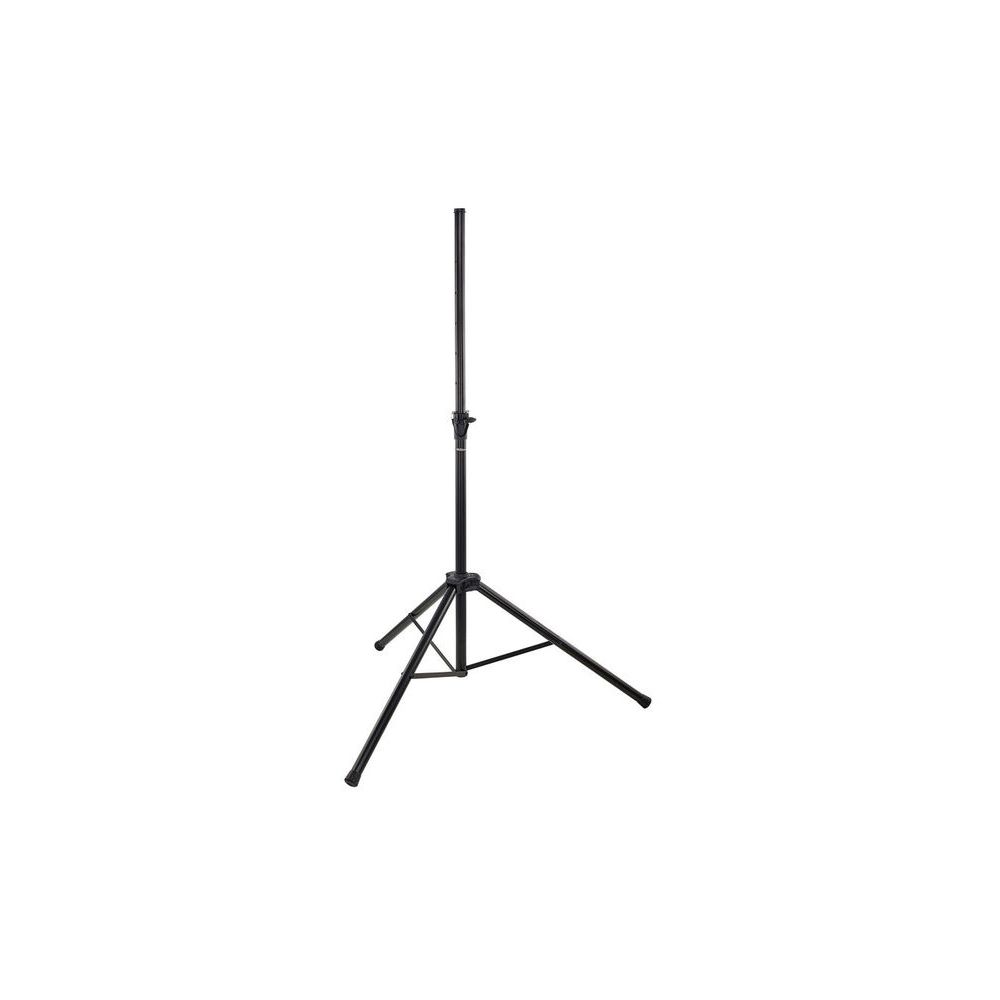

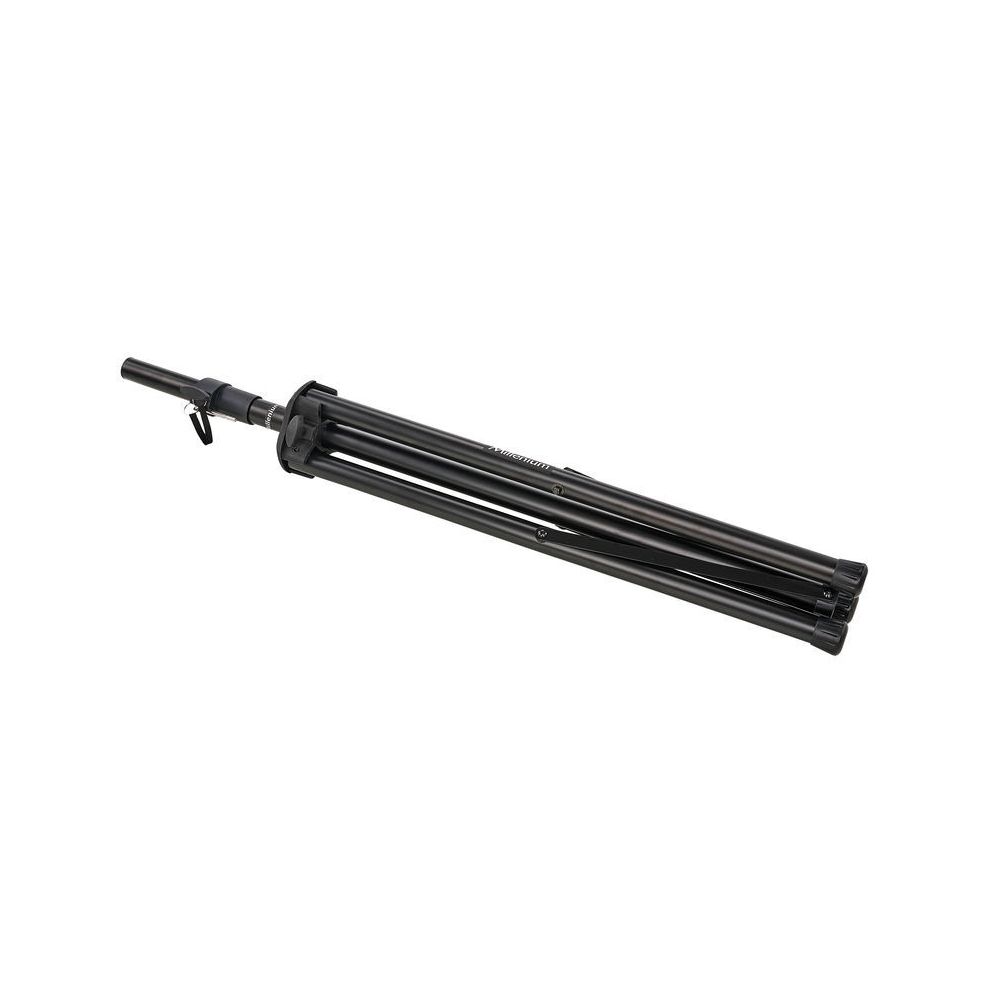

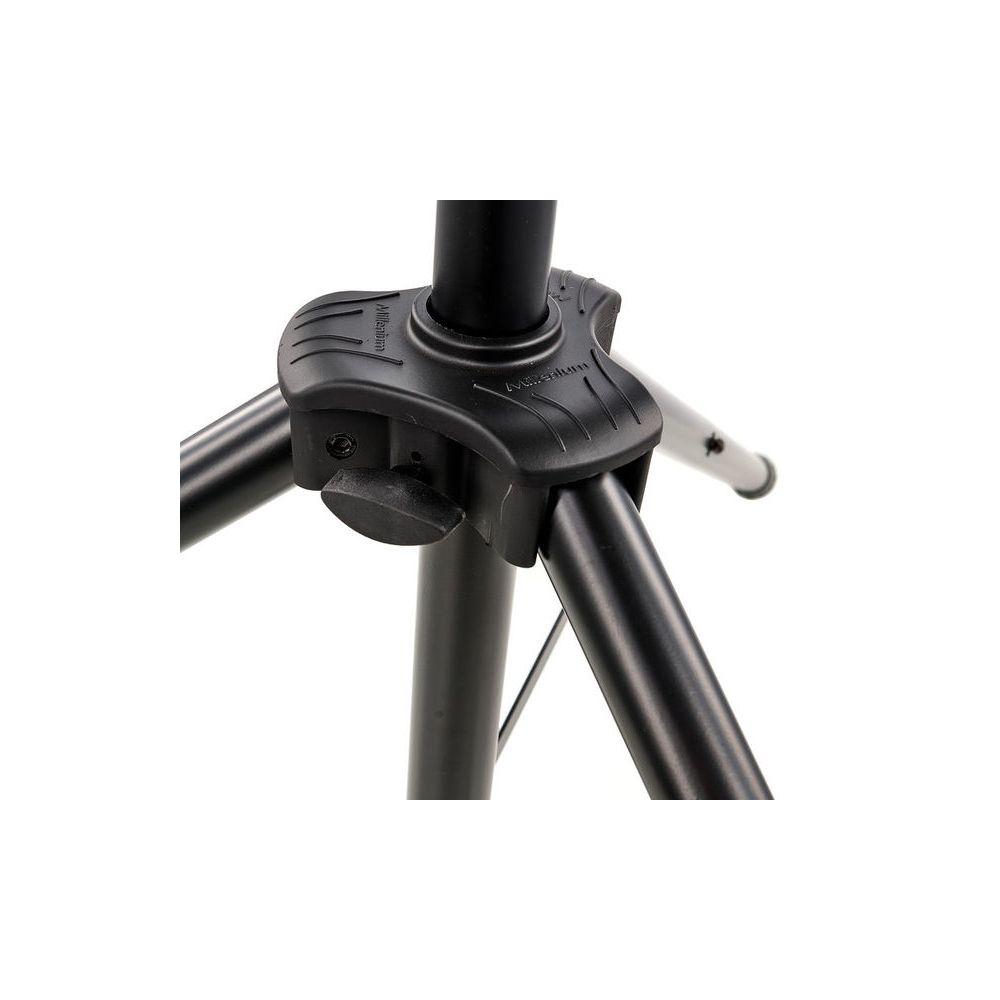

Millenium BS-2011 MK II

Professional Speaker Stand

• Flange diameter: 35 mm
• Load capacity: up to 30 kg
• Material: Aluminium
• Height: 1,08 - approx. 2,00 m
• Weight: 2,2 kg
• Colour: Black

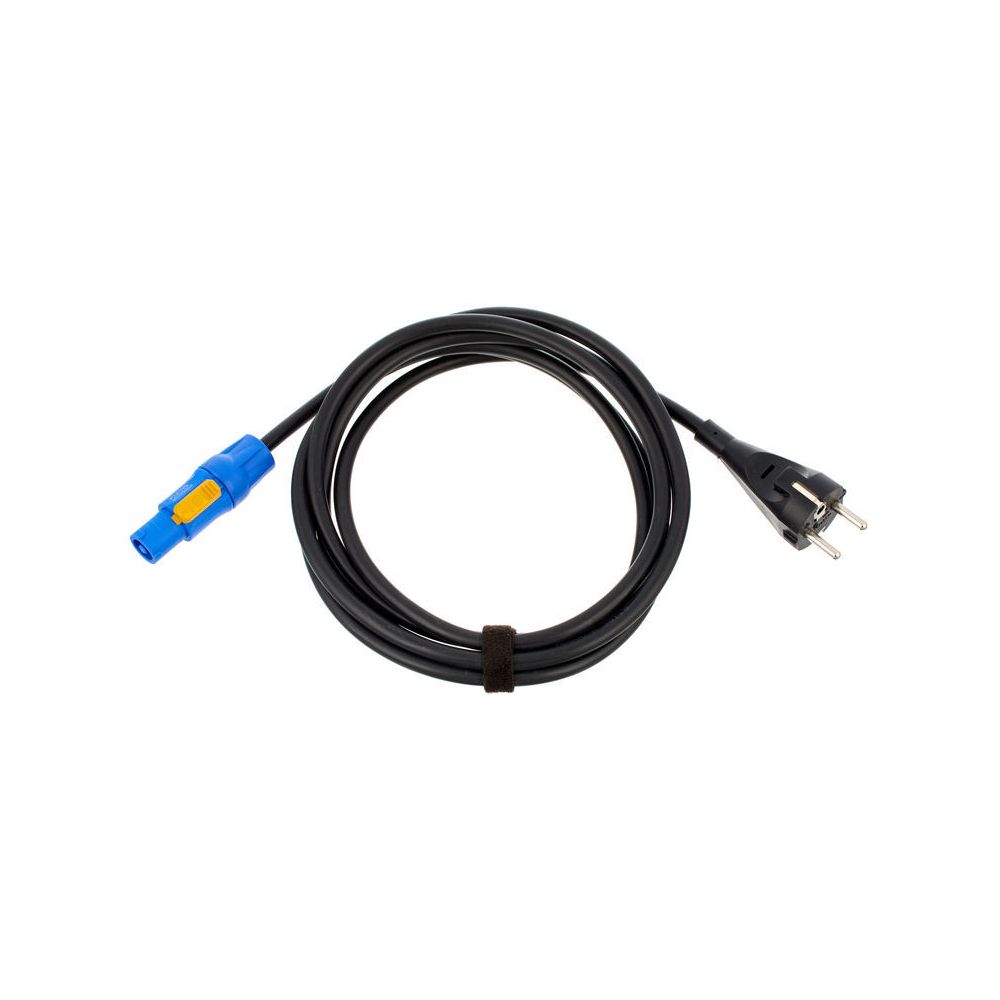

Cordial Power Twist Cable 3m

Power Twist cable

• Length: 3.0 m
• Certified according to VDE directive
• Neutrik powerCON NAC3FCA-1 plug with locking < - > safety contact plug straight
• Neutrik quality plug according to standard IEC 61984, UL 94 V-0, VDE, SEV
• Safety contact plugs according to standard CSN IEC 60884, CSN 33 2000-5-523, CSN 347410-5
• Transparent shrink tubes
• Loadable up to 16 A
• Wire cross-section 1.5 mm²

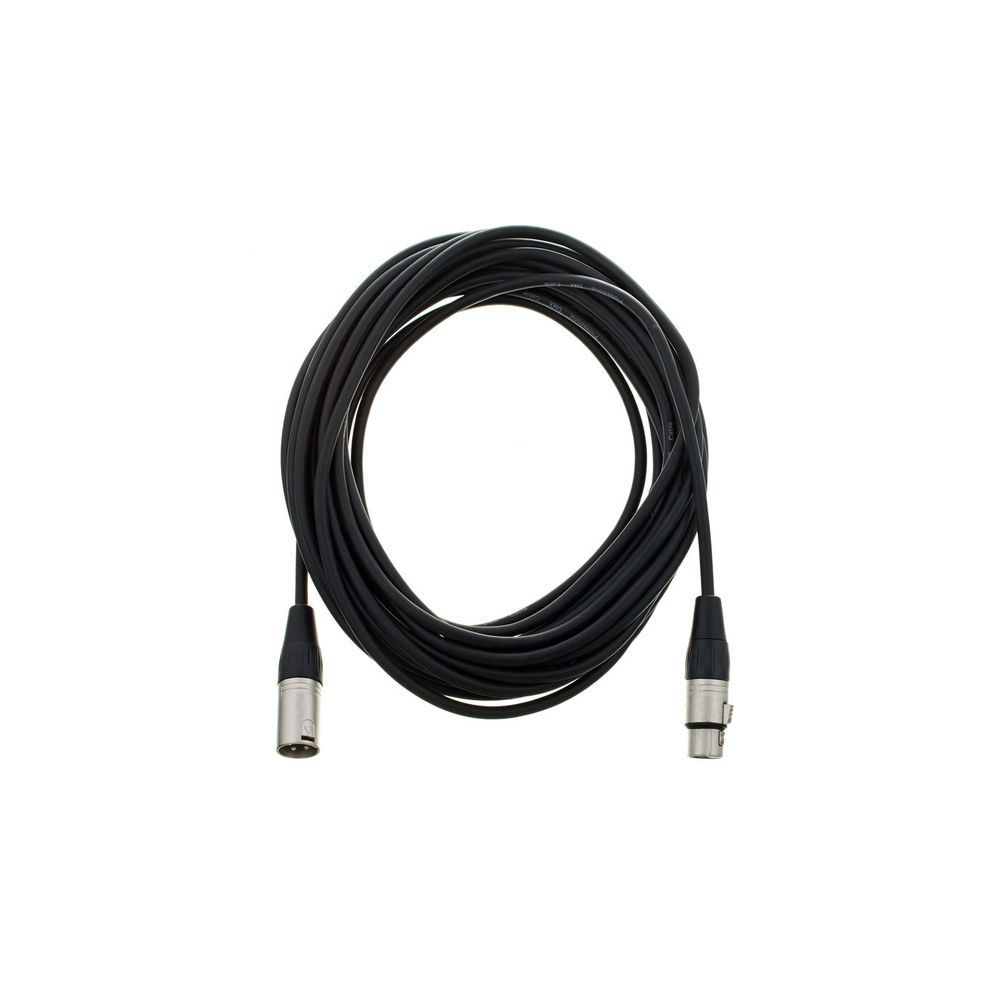

the sssnake DMX-Cable 1000/3

Professional DMX Connector Cable

• 10m
• XLR male - XLR female
• 110 Ohms
• 3 pin XLR
• Black
• With metal XLR connectors

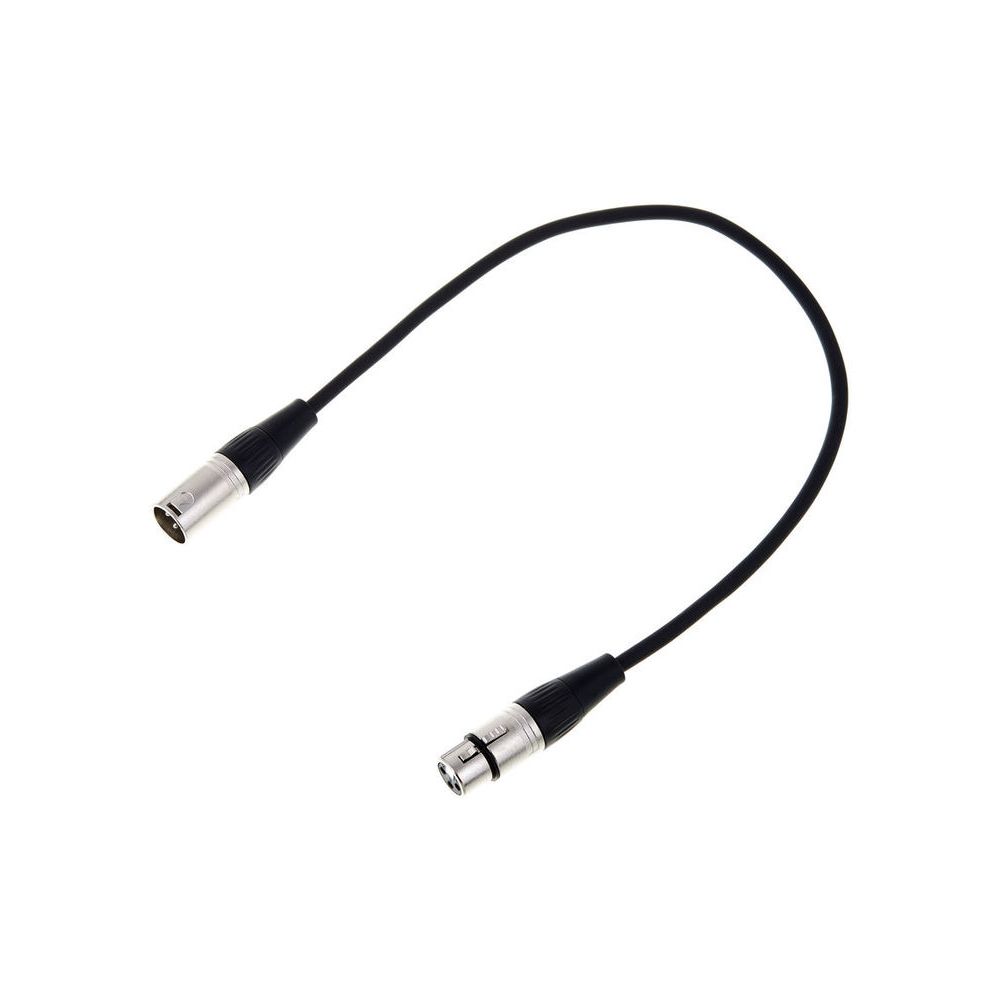

4x the sssnake SK233-0,5 XLR Patch

XLR Patch cable

• Exclusively manufactured for Thomann
• XLR Male / XLR Female
• Length: 0,5 m
• Colour: black
