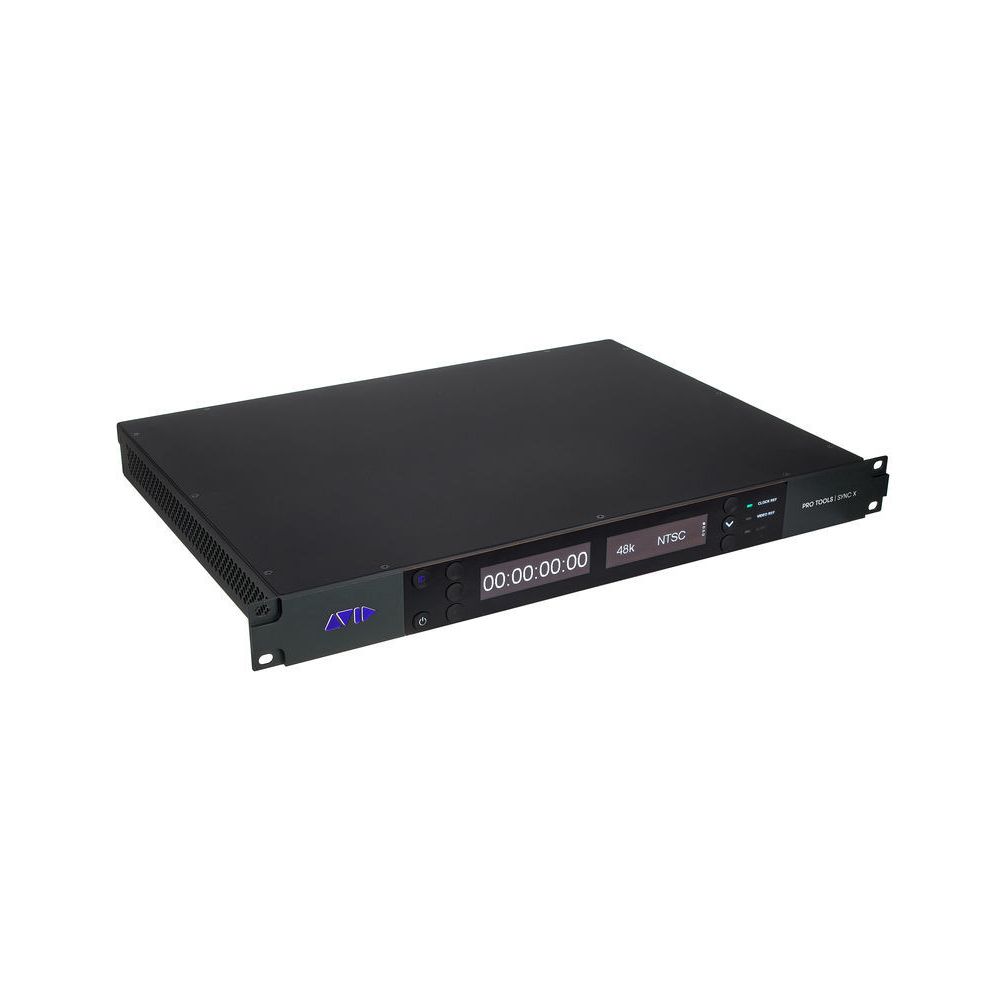

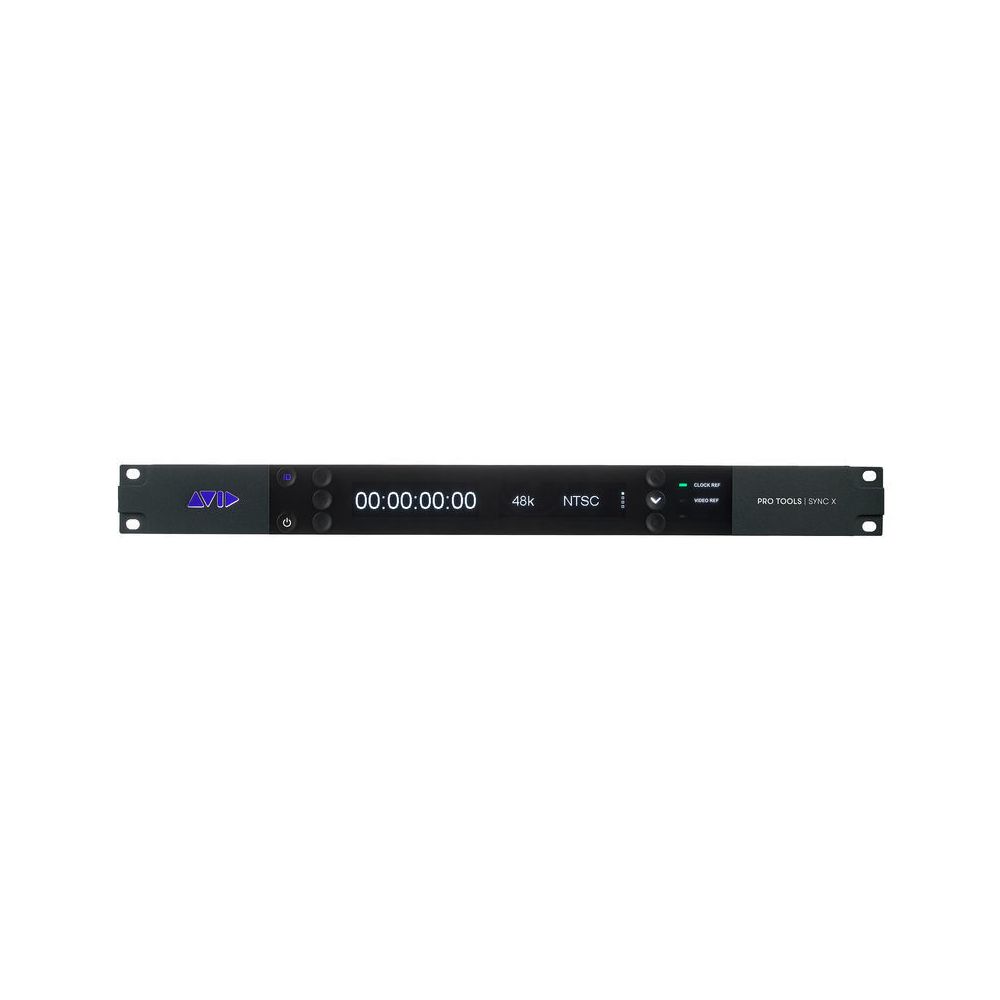

Synchroniser For Pro Tools Ultimate Systems

• Reference clock source for more complex Pro Tools Ultimate systems
• Reliable timing with low jitter
• Nearly sample-accurate locking and frame-accurate synchronisation
• Support for all common clock sources
• Pull-up / down rates
• Timecode rates and HD / SD formats
• An integrated video reference signal generator
• Dimensions: 482 x 343 x 45 mm
• Weight: 4.45 kg

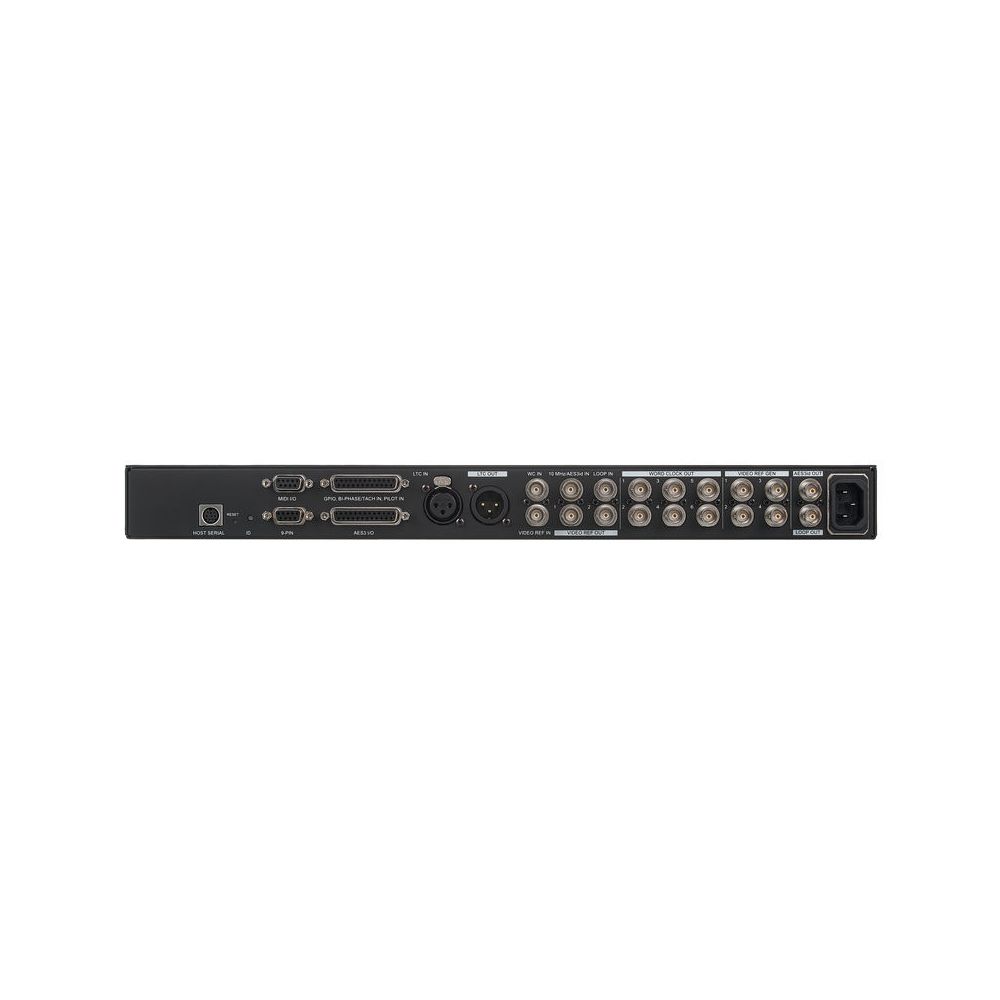

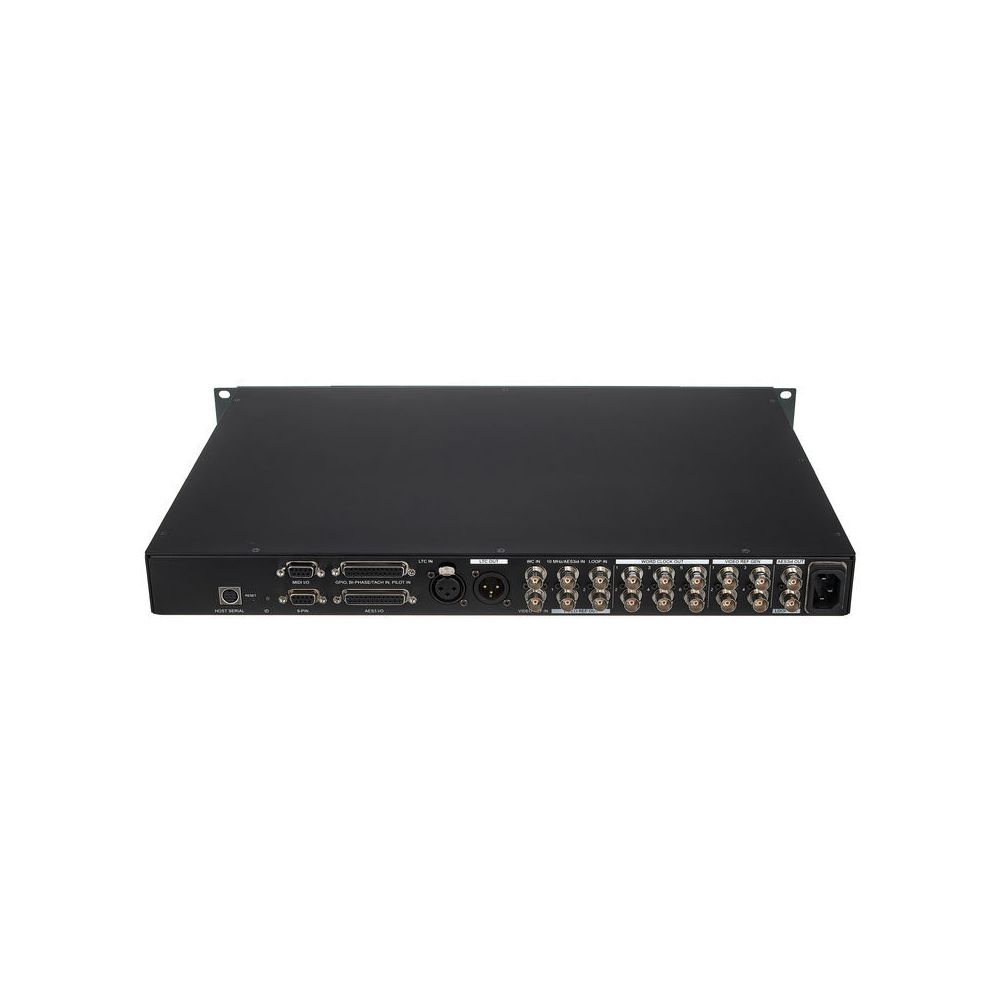

Connections:

• Loop Sync input and output BNC
• 1 x Word clock input BNC
• 6 x Word clock output BNC
• 10 MHz clock input BNC
• AES3id output BNC
• AES3 input and output 25-pin sub-D
• GPIO
• Bi-Phase/Tach In
• Pilot In 25-pin Sub-D
• LTC In- and Output XLR
• MTC Out 9-pin D-sub
• Machine Control 9-pin Sub-D
• 4 x Video Reference Generator Output BNC
• 1 x Video Reference input BNC
• 2 x Video Reference Output BNC
• Host serial port 8-pin mini DIN

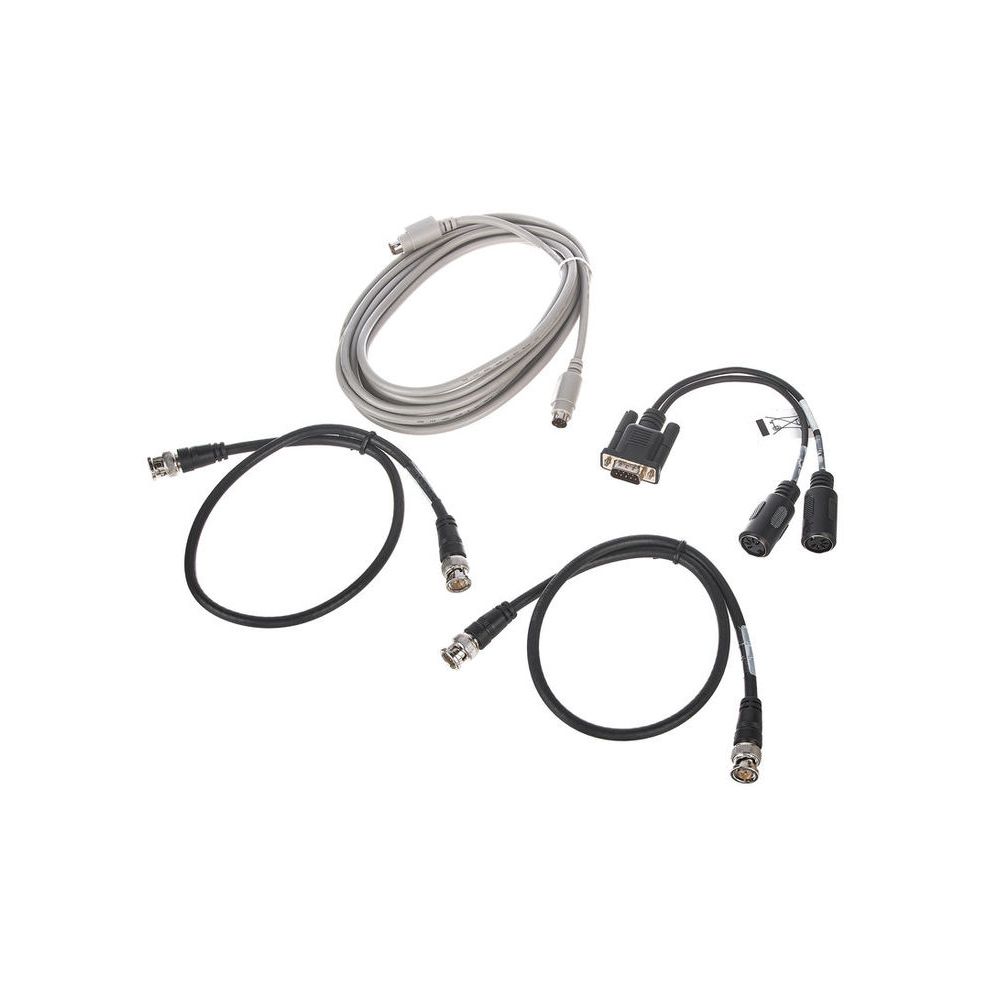

Contents Of Delivery:

• Avid Pro Tools | Sync X Interface
• Euro power cable
• 2 BNC cables 61 cm
• 9-pin Sub-D to DIN 5-pin midi cable whip
• 8-pin mini DIN cable
