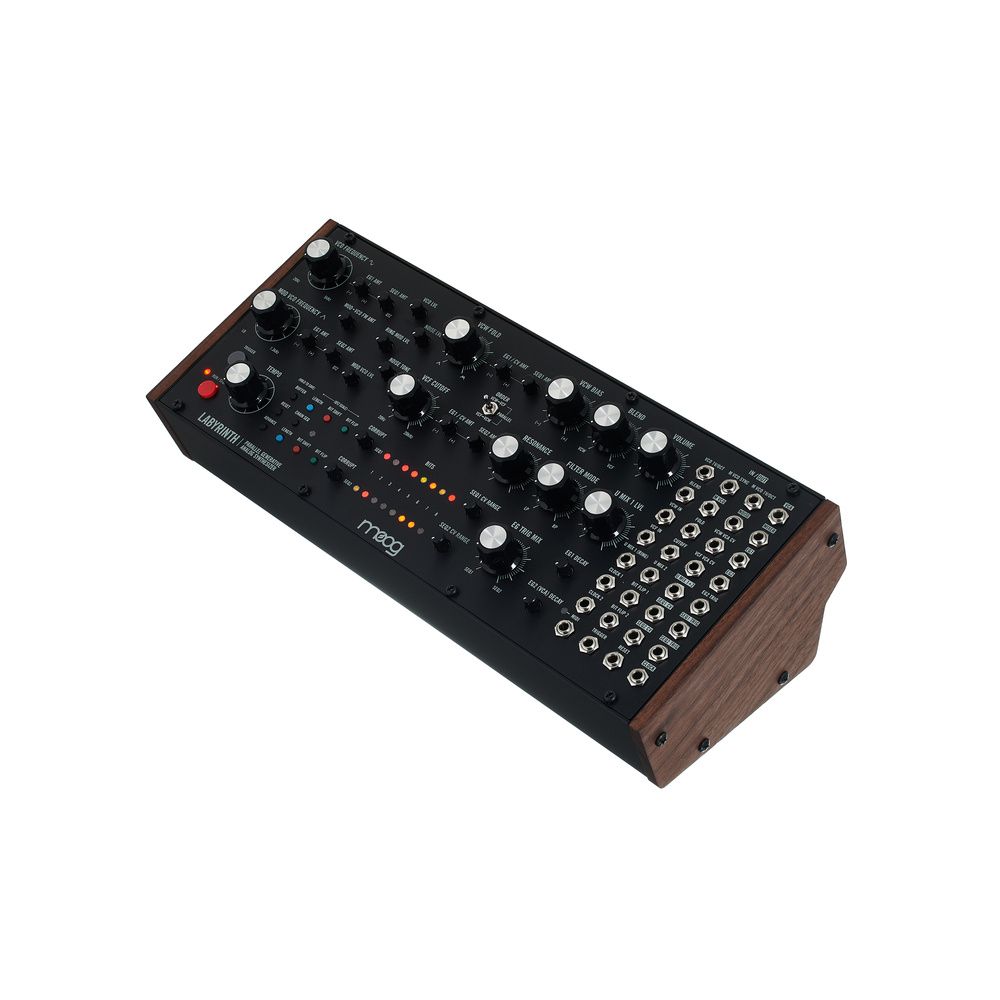

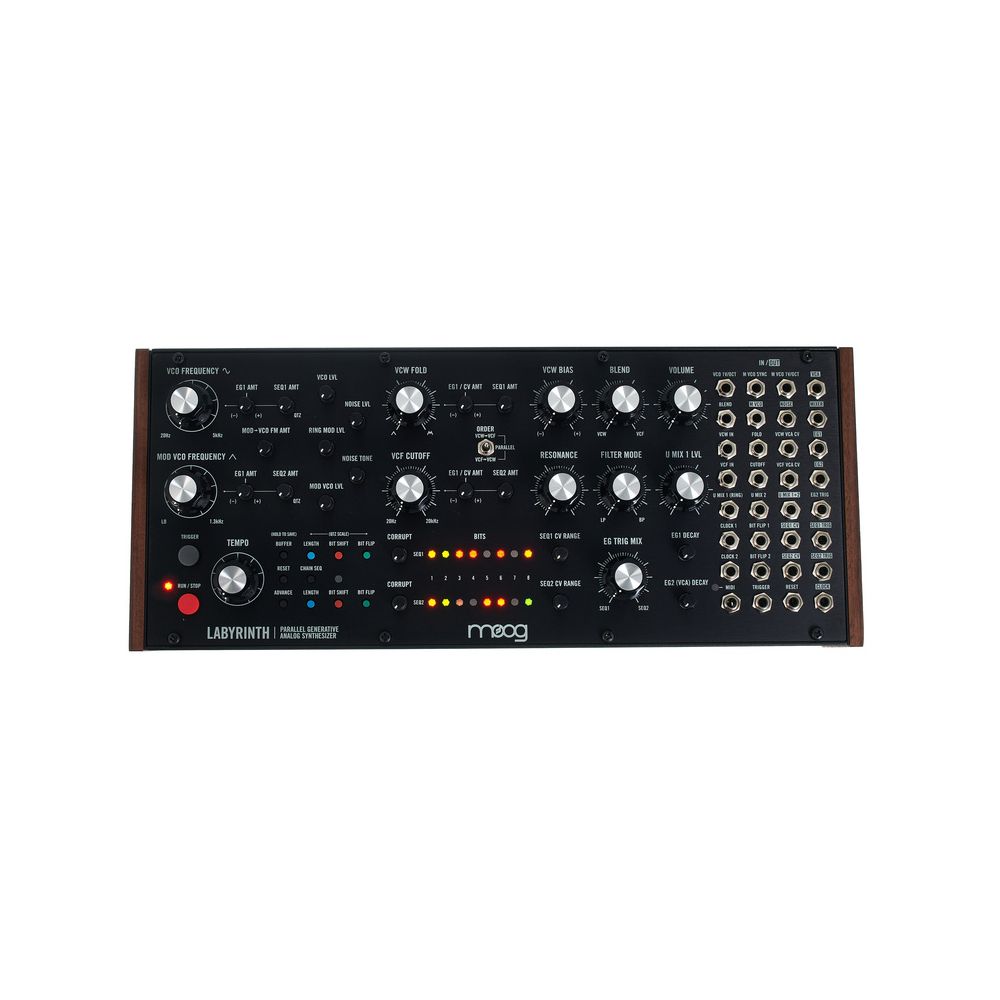

Dual Generative Analogue Synthesiser

• Dual signal path with main oscillator (sine) and modulation oscillator (triangle), each modulatable via a sequencer and envelope
• Cross modulation, ring modulator and noise generator with adjustable tone colour
• Wavefolder and resonant filter (low-pass / high-pass fadeable), each modulatable via a sequencer and envelope and with shared crossfader
• Two regenerative sequencers with 8 steps, based on shift registers
• Special functions per sequencer such as selectable tone scale, buffer freeze, adjustable length, bit shift and bit flip

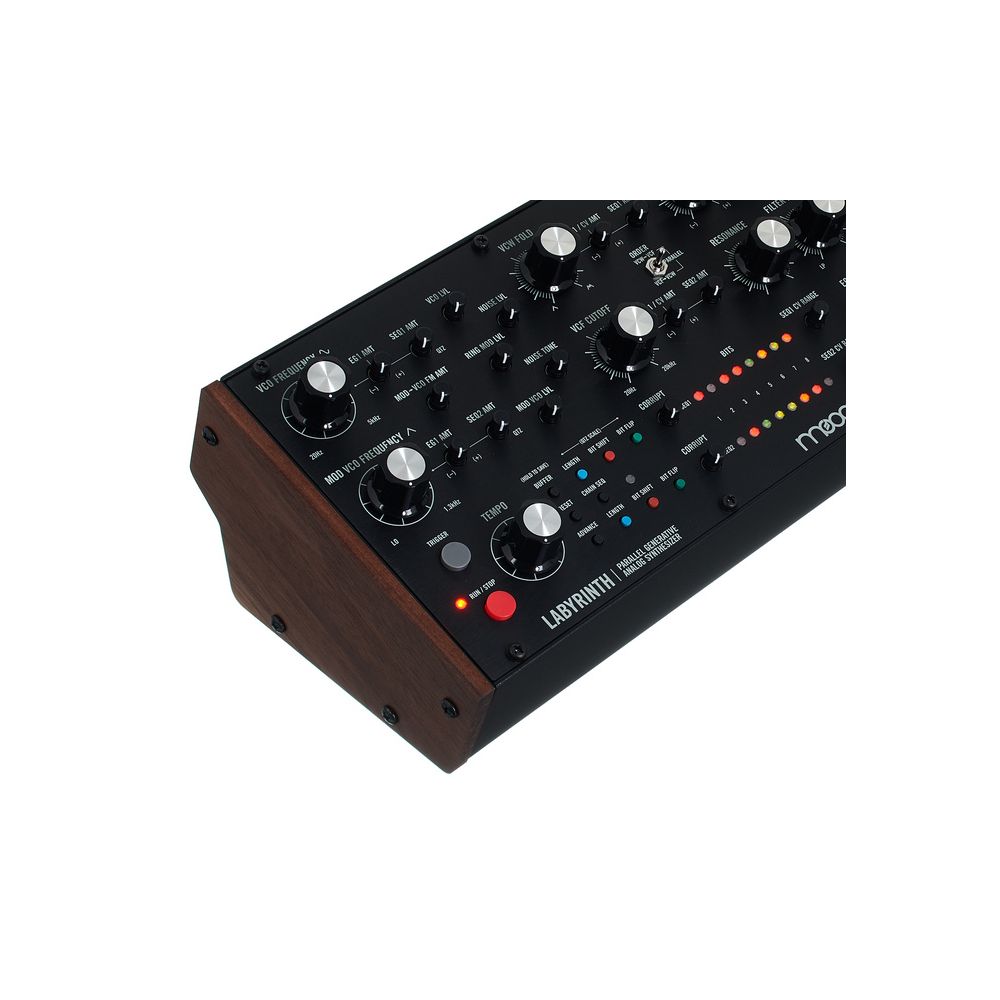

• Start/stop and trigger buttons, tempo control and two adjustable decay envelopes

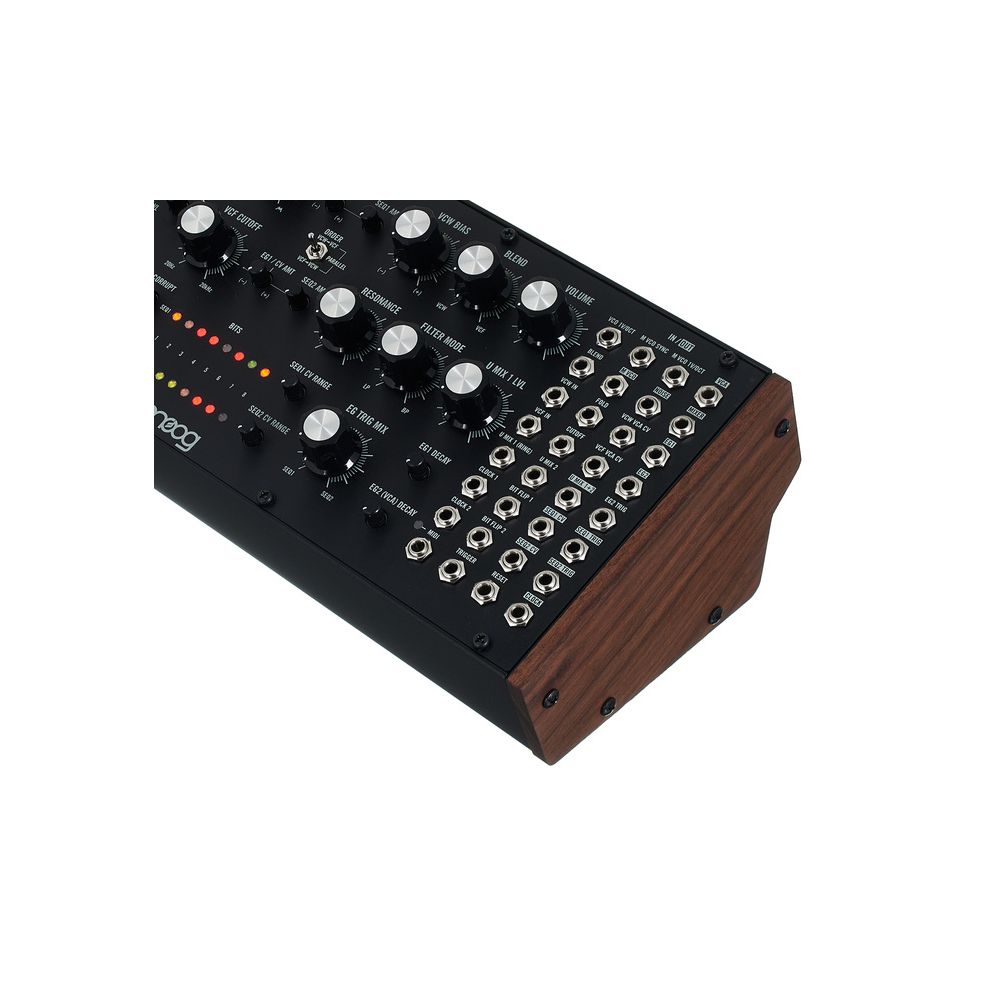

• Patchbay with 32 sockets for CV and audio signals for connection to other synthesisers or modular systems (3.5 mm jack)

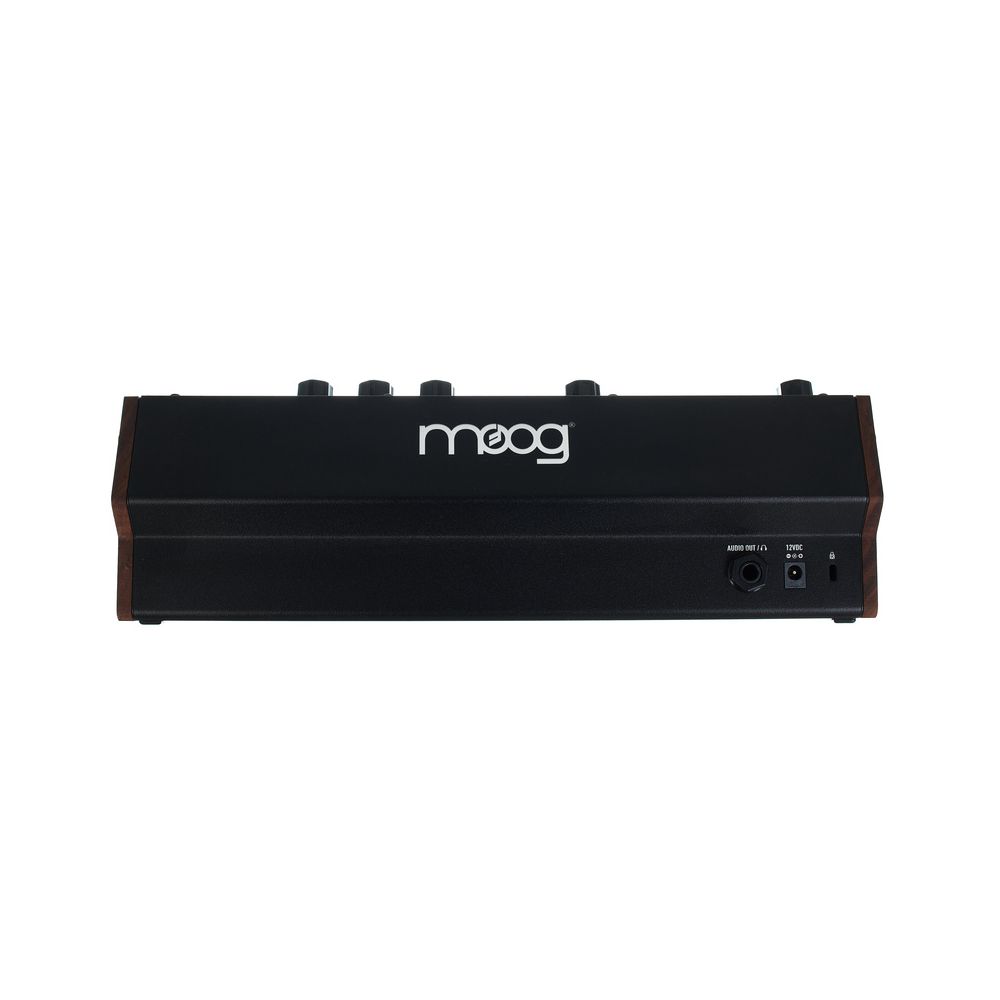

• Line/headphone output: 6.3 mm
• Dimensions (W × H × D): 326 × 107 × 143 mm
• Weight: 1.5 kg
• Eurorack specifications: Width: 60 HP, Depth: 38 mm

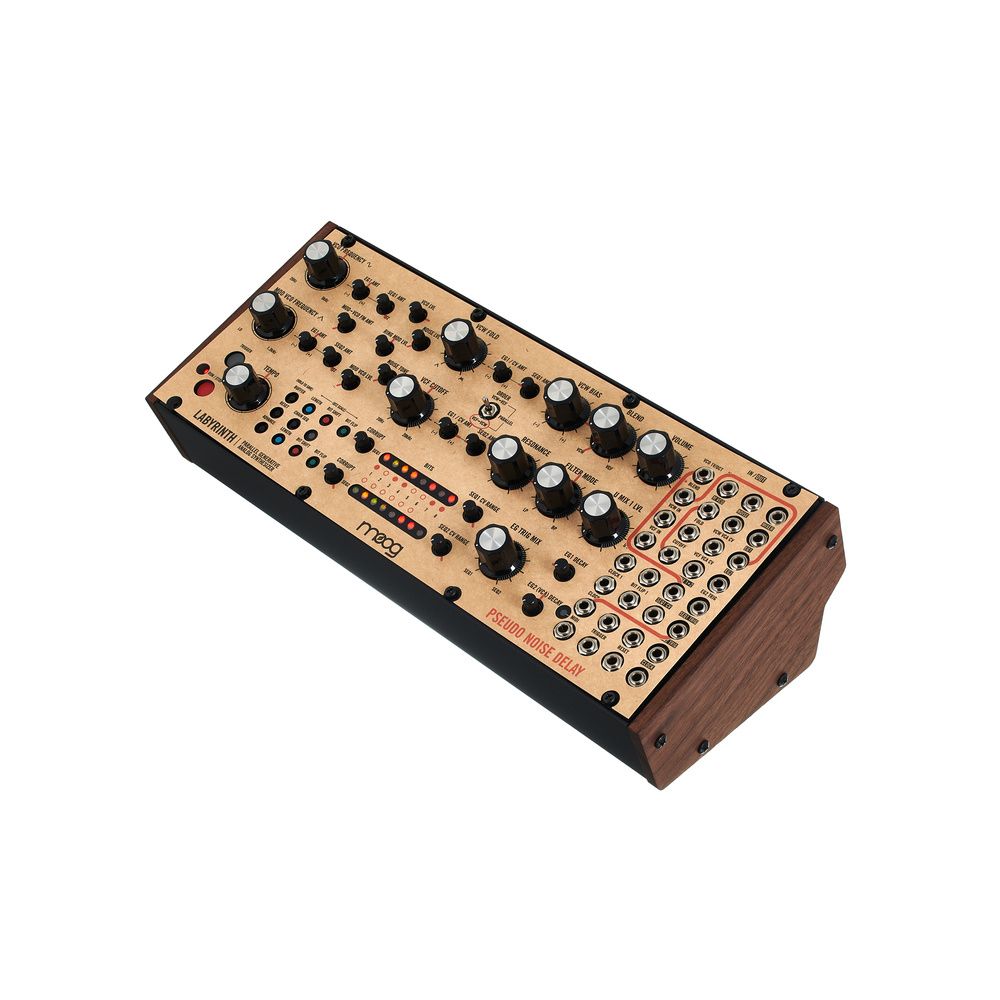

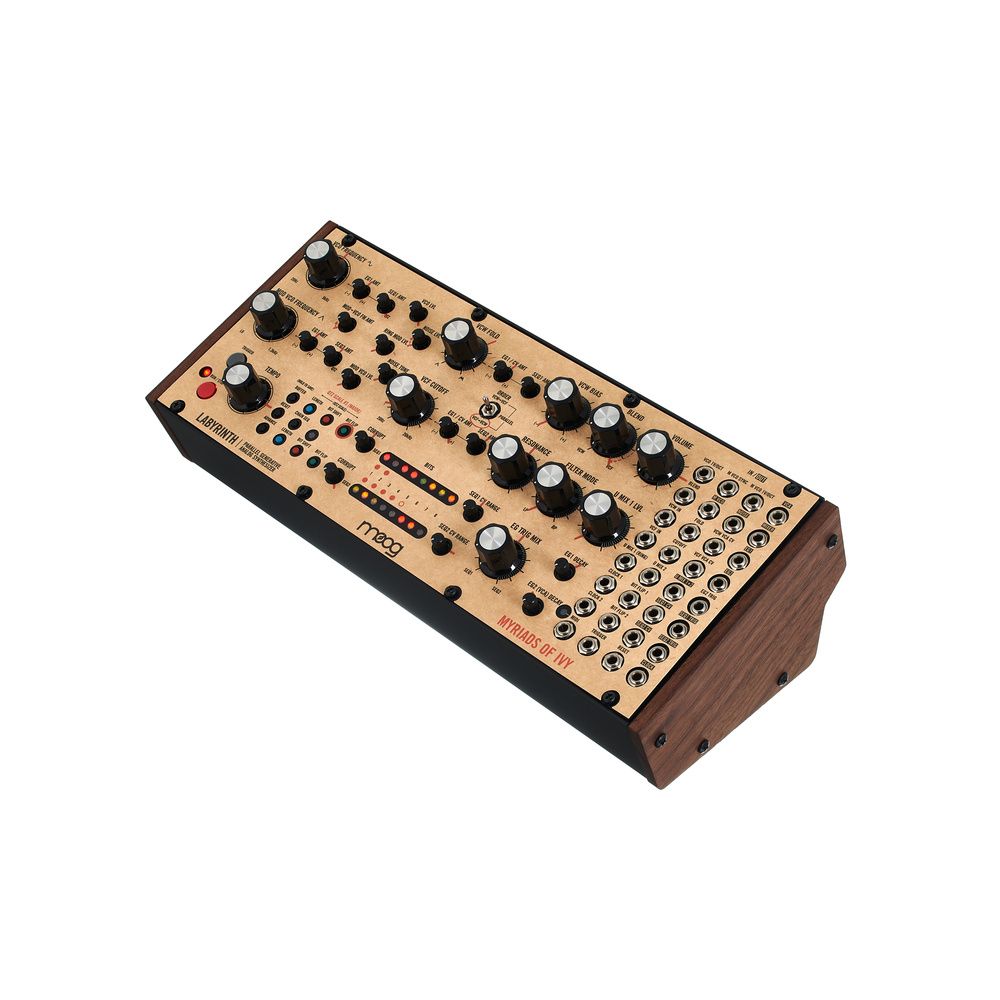

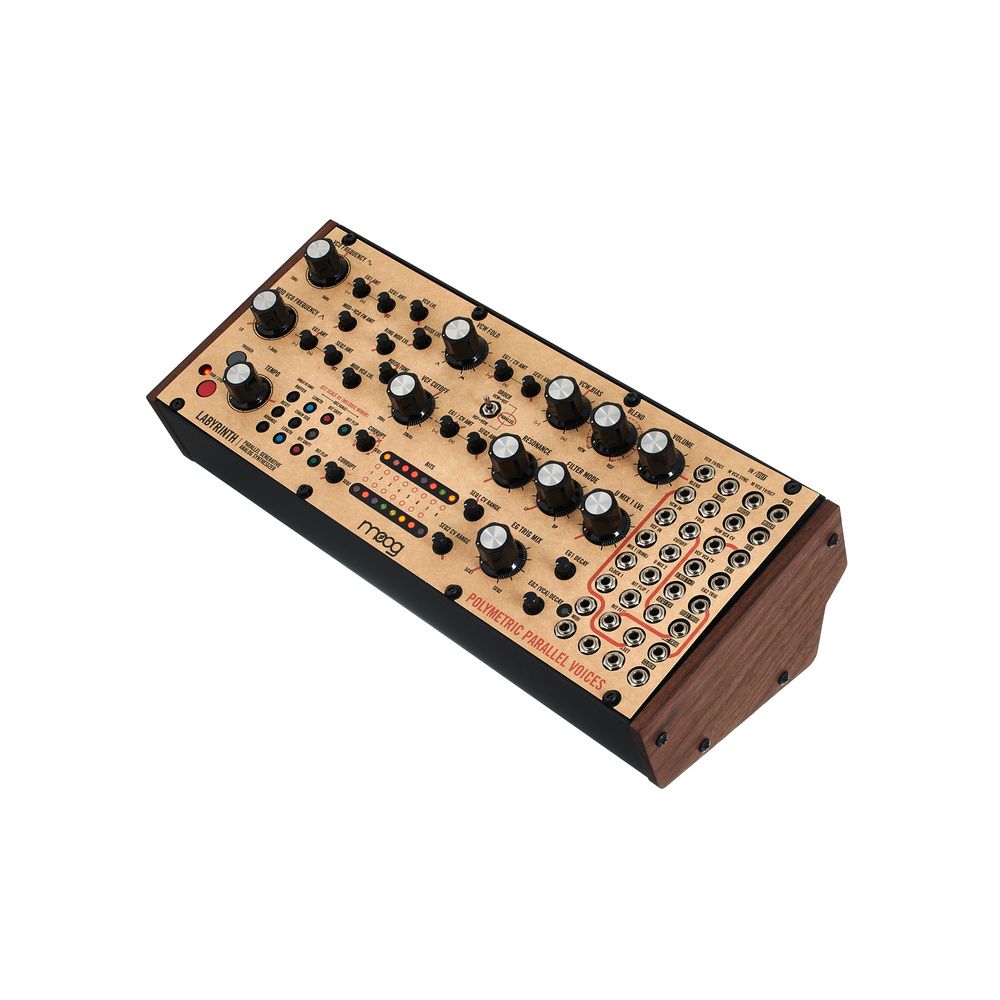

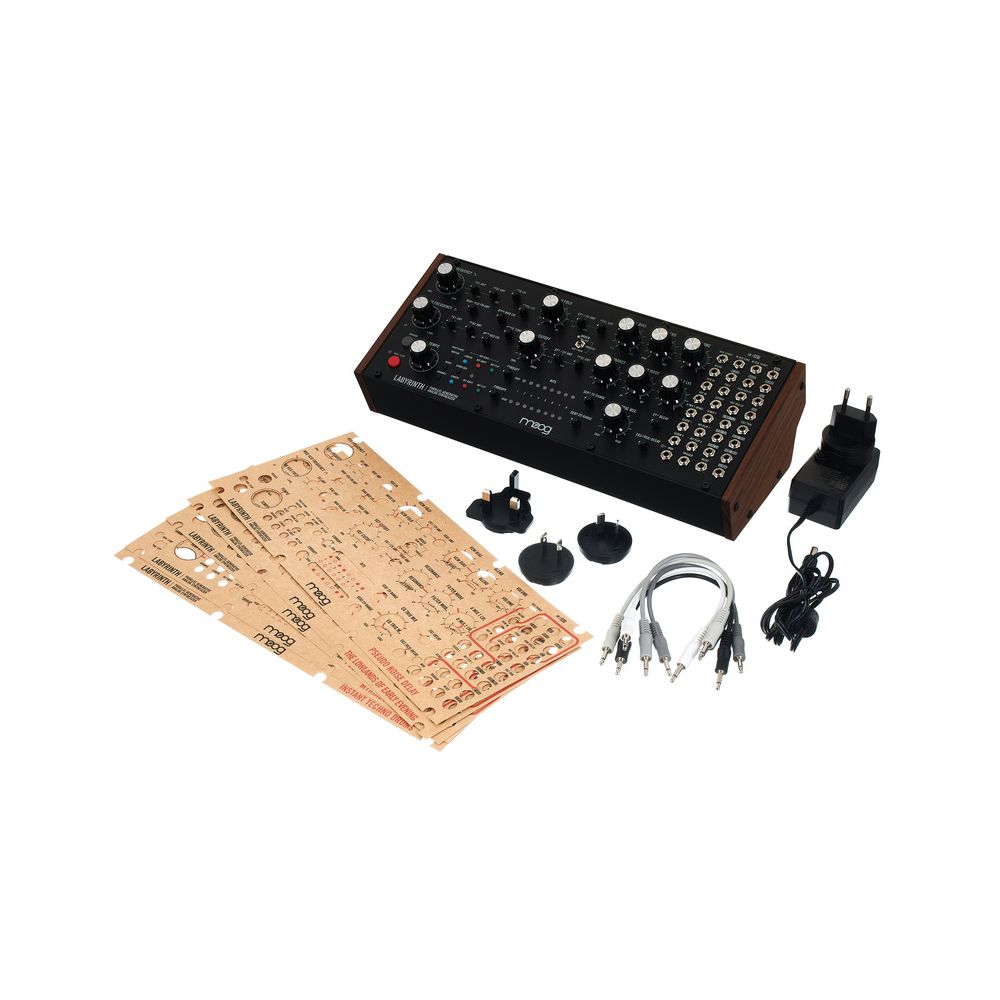

• Includes power supply (12 V DC, 2.0 A), 5 patch cables, preset overlays and Quick Start Guide
