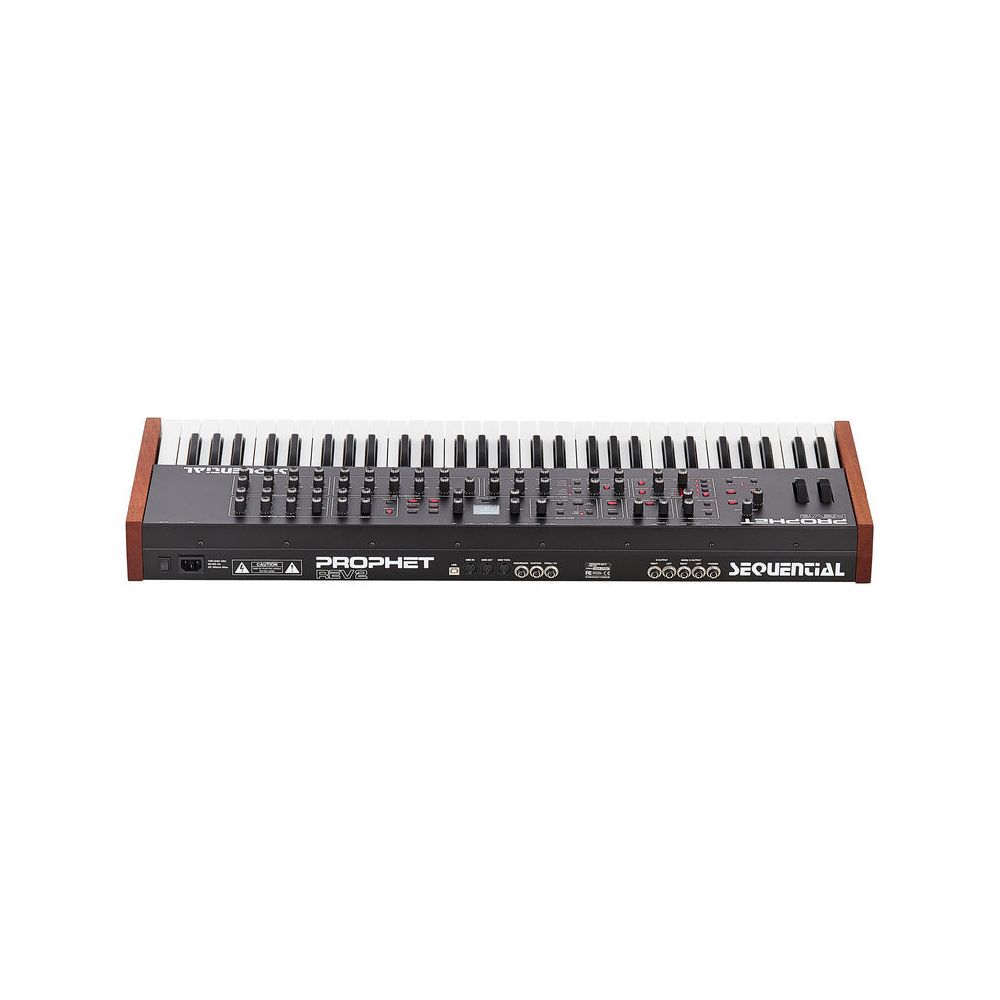

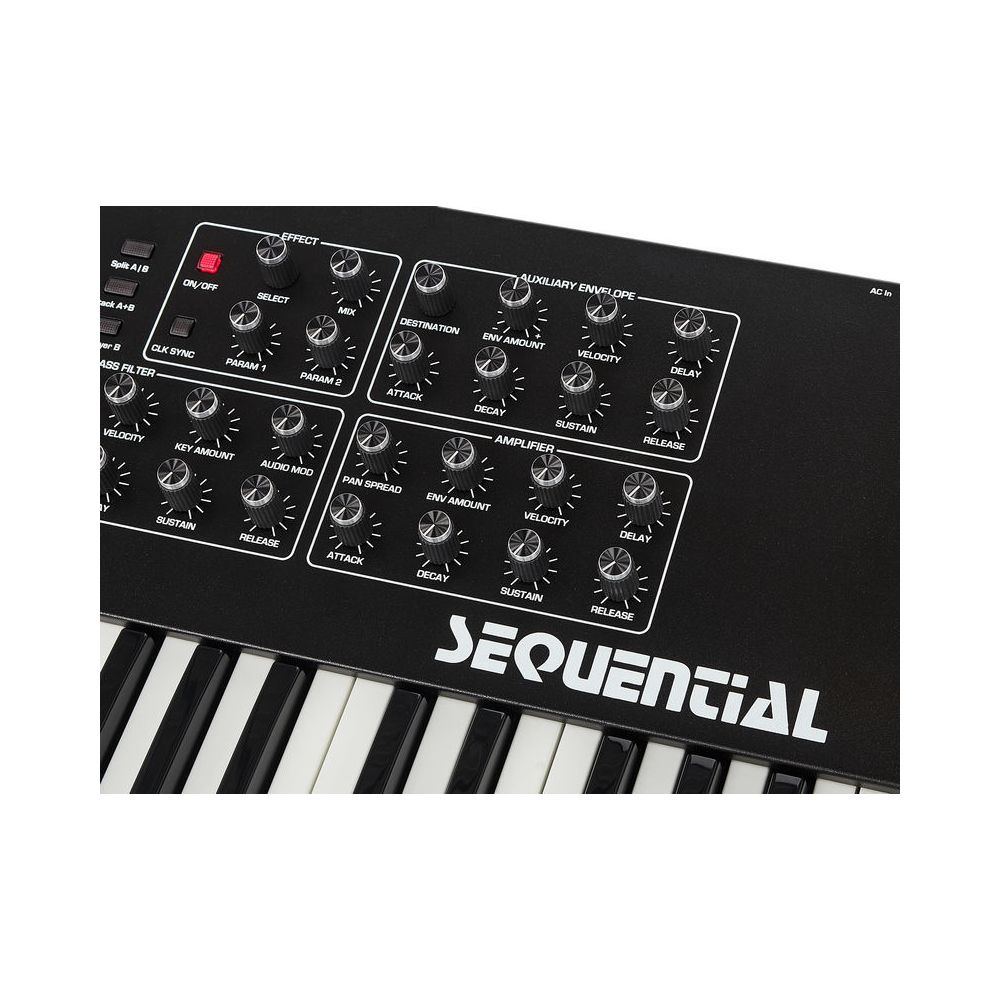

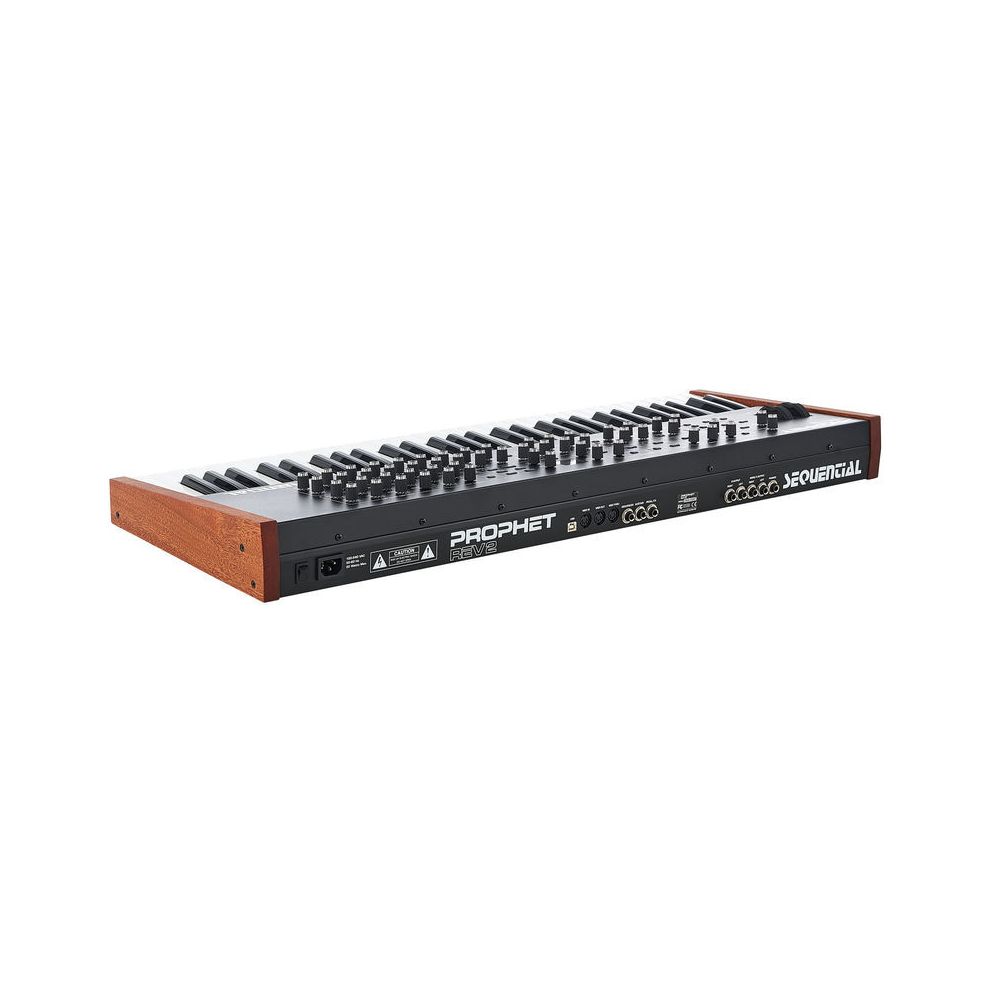

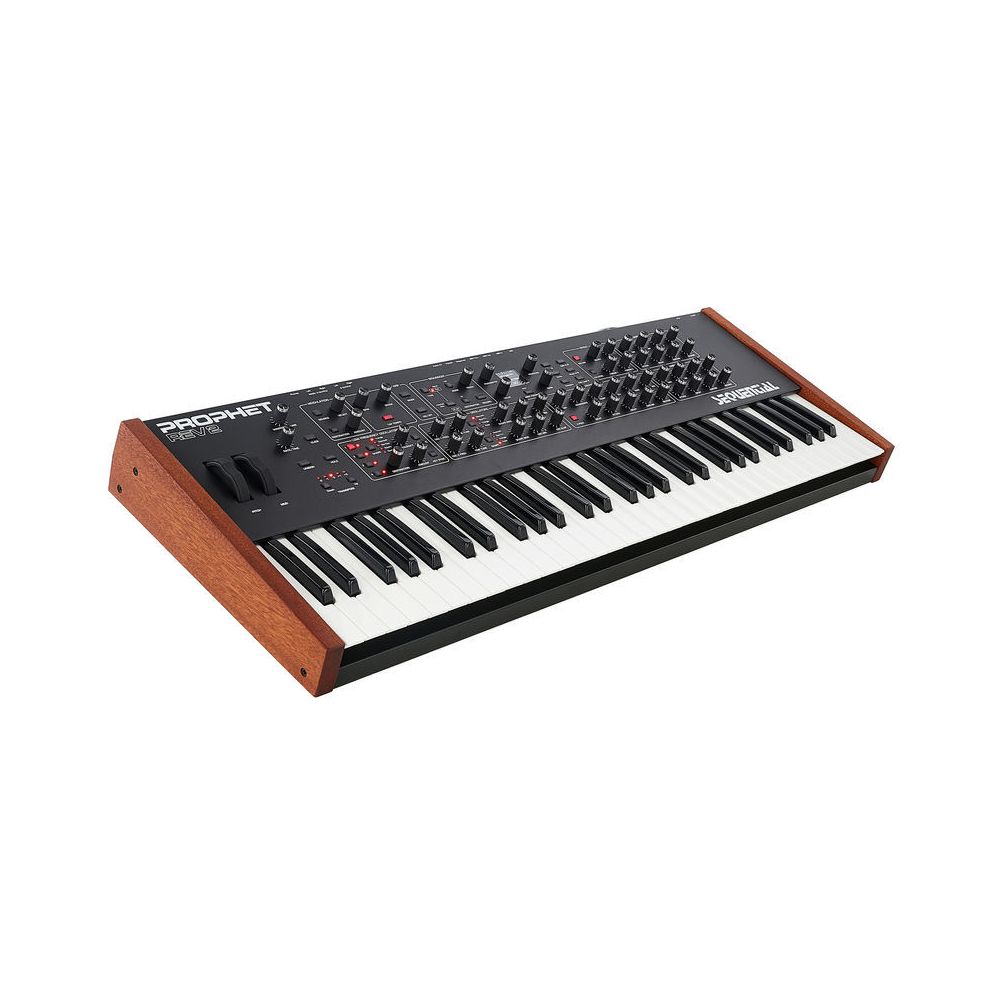

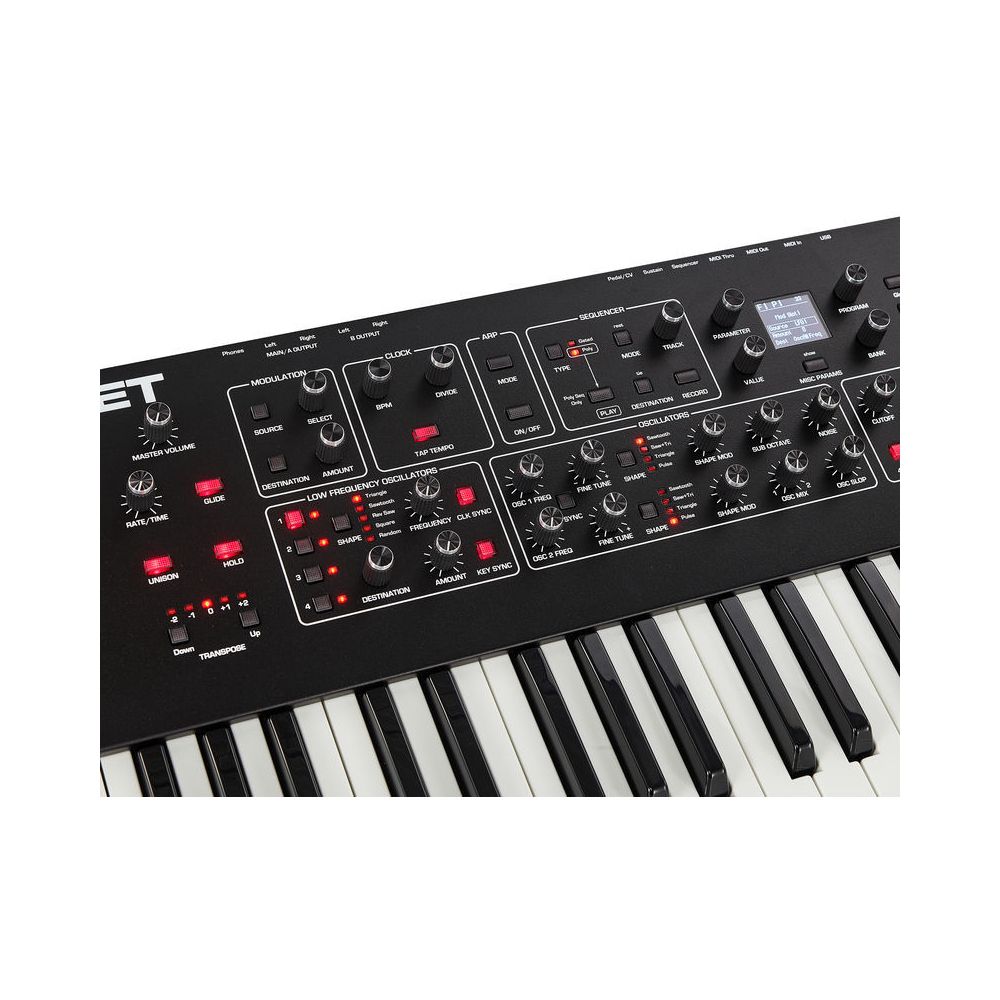

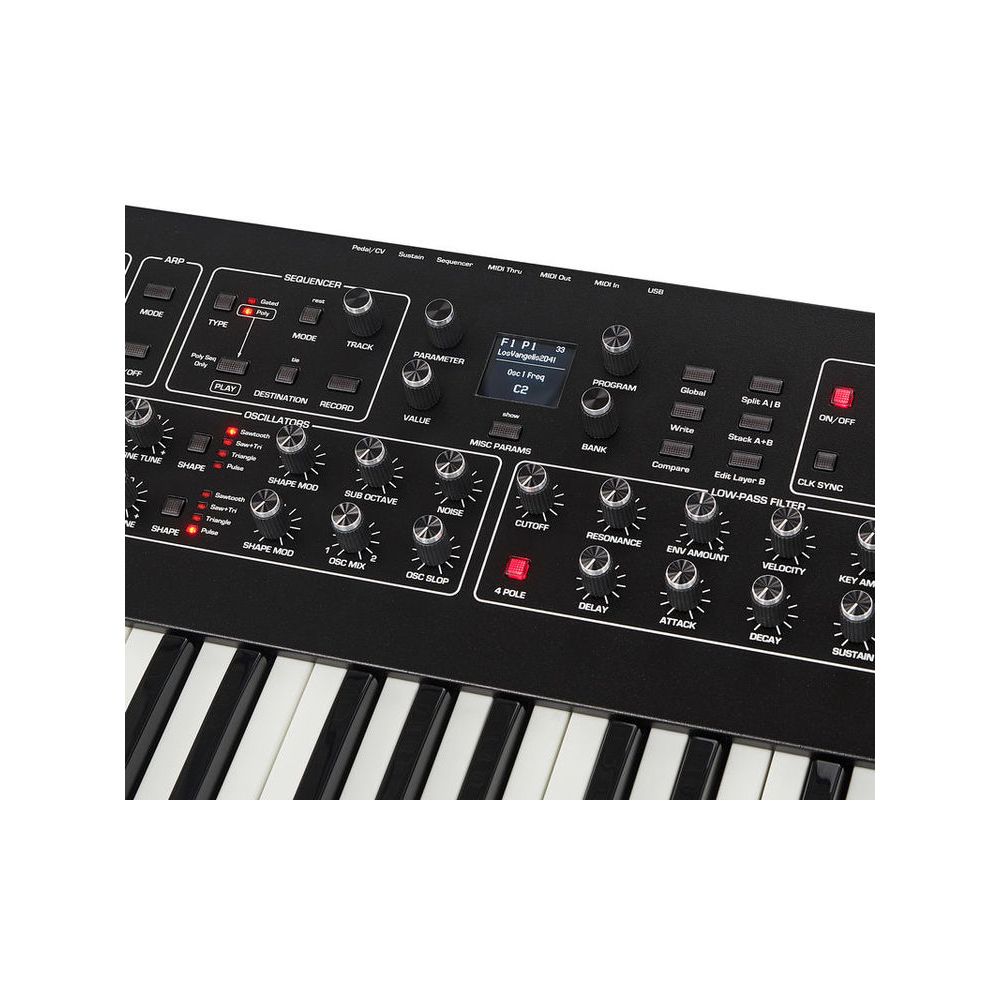

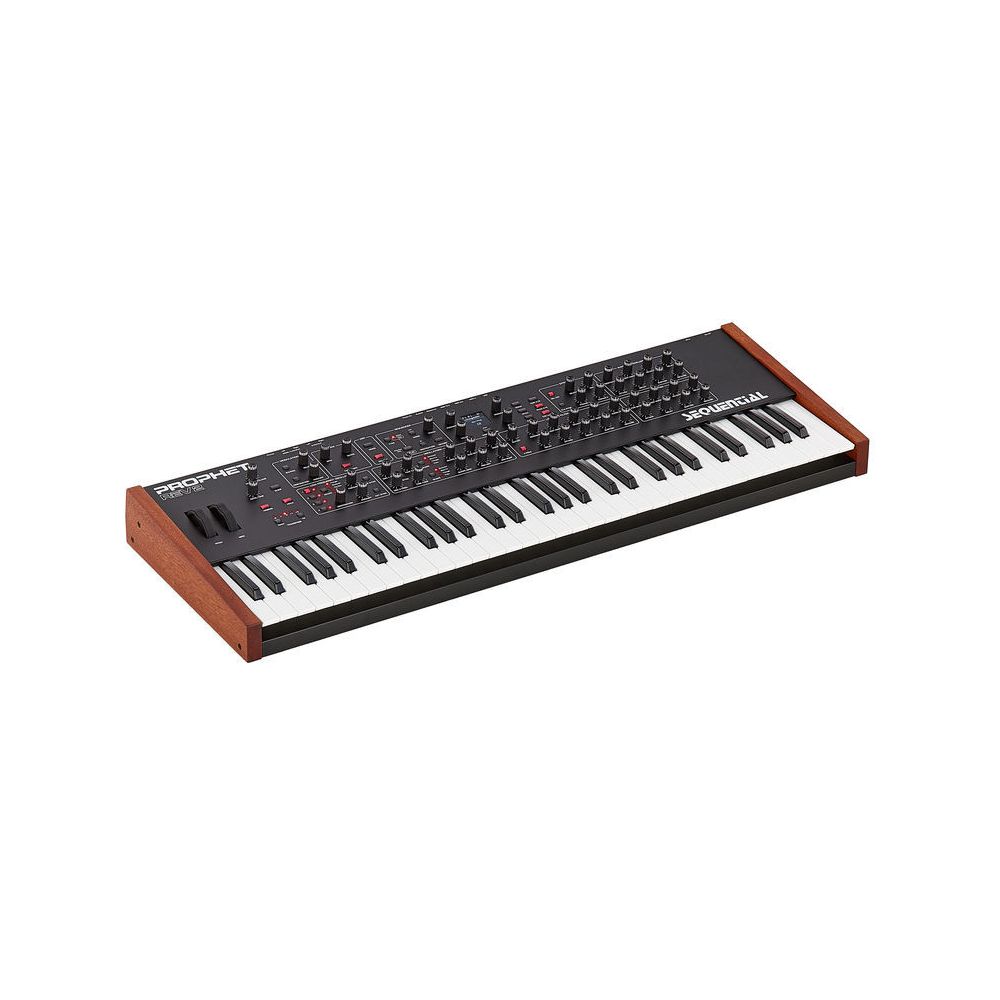

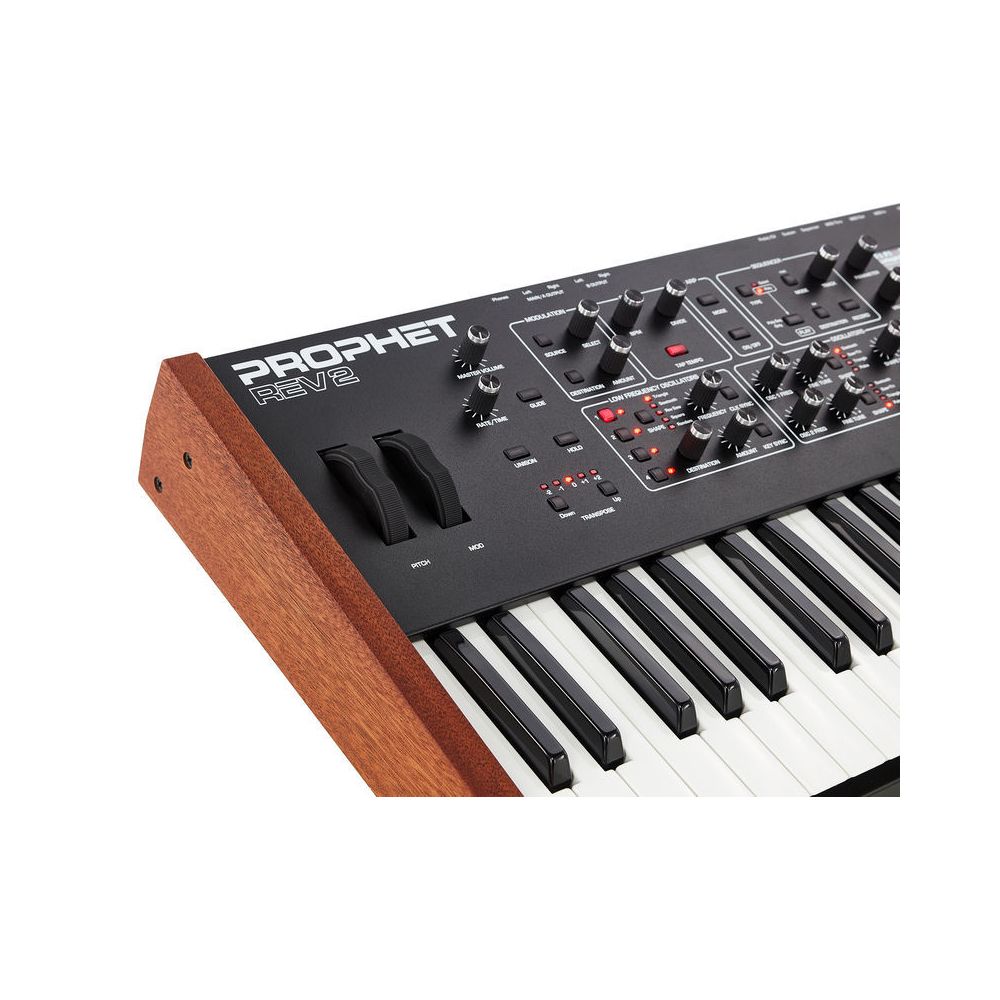

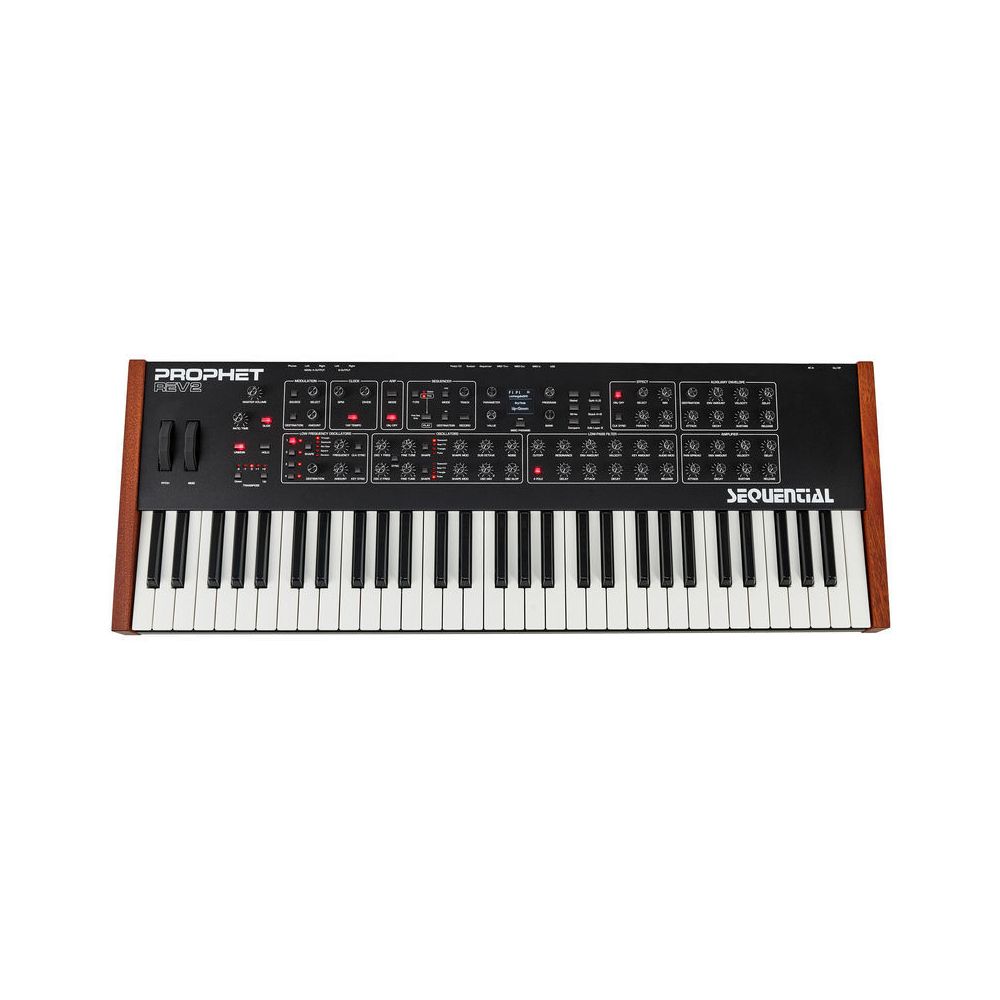

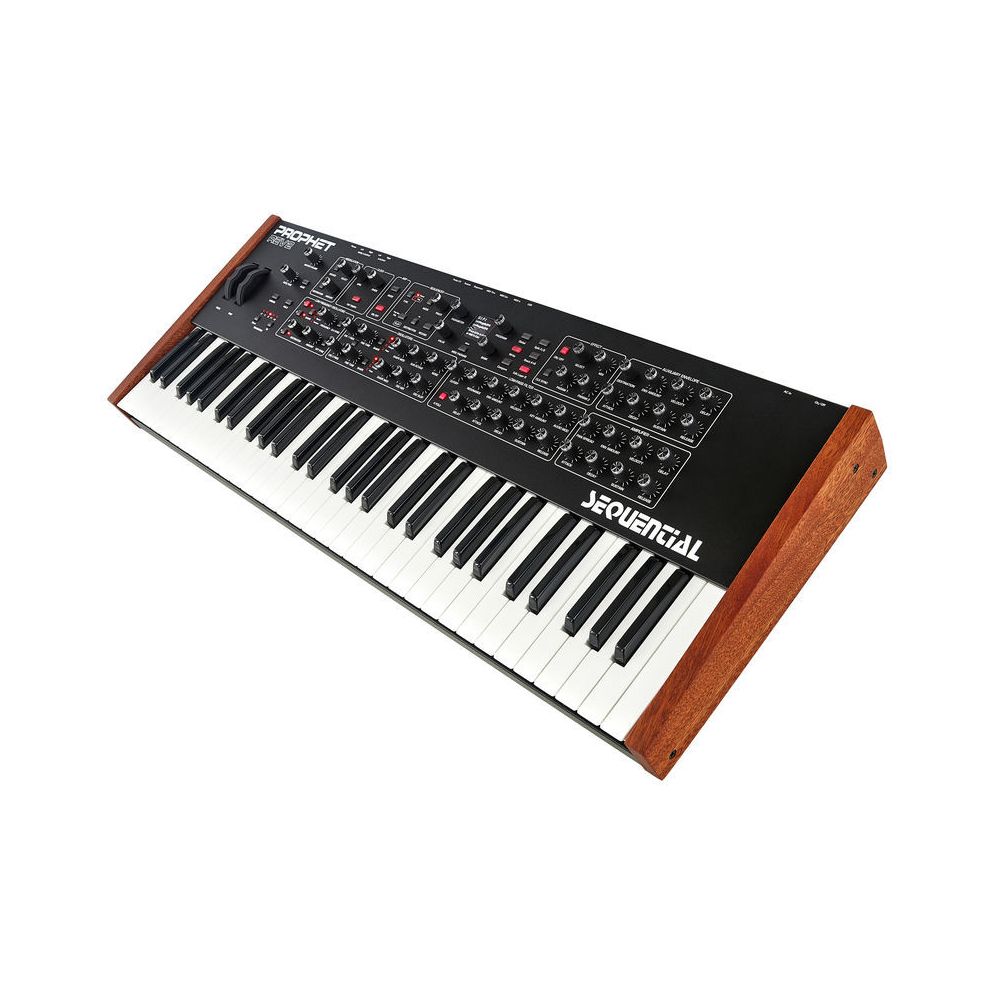

Sequential Prophet REV2

8-Voice Polyphonic Analogue Synthesiser

• Expandable to 16 voices with optional voice card
• Two digitally controlled oscillators per voice
• 2/4 Pole Curtis Lowpass filter
• VCA
• Original Prophet 4 LFOs
• 3 Envelope generators
• Each programme features two layers
• Polyphonic step sequencer with up to 64 steps and up to 6 notes per step
• Separate 16 x 4 gate step sequencer
• Arpeggiator
• 512 Factory presets (4 banks with 128 presets each) and 512 fully editable user programmes with 2 layers (2 separate sounds) in each programme
• 5-Octave keyboard velocity sensitive with aftertouch
• Pitch bend and modulation wheel
• Split function

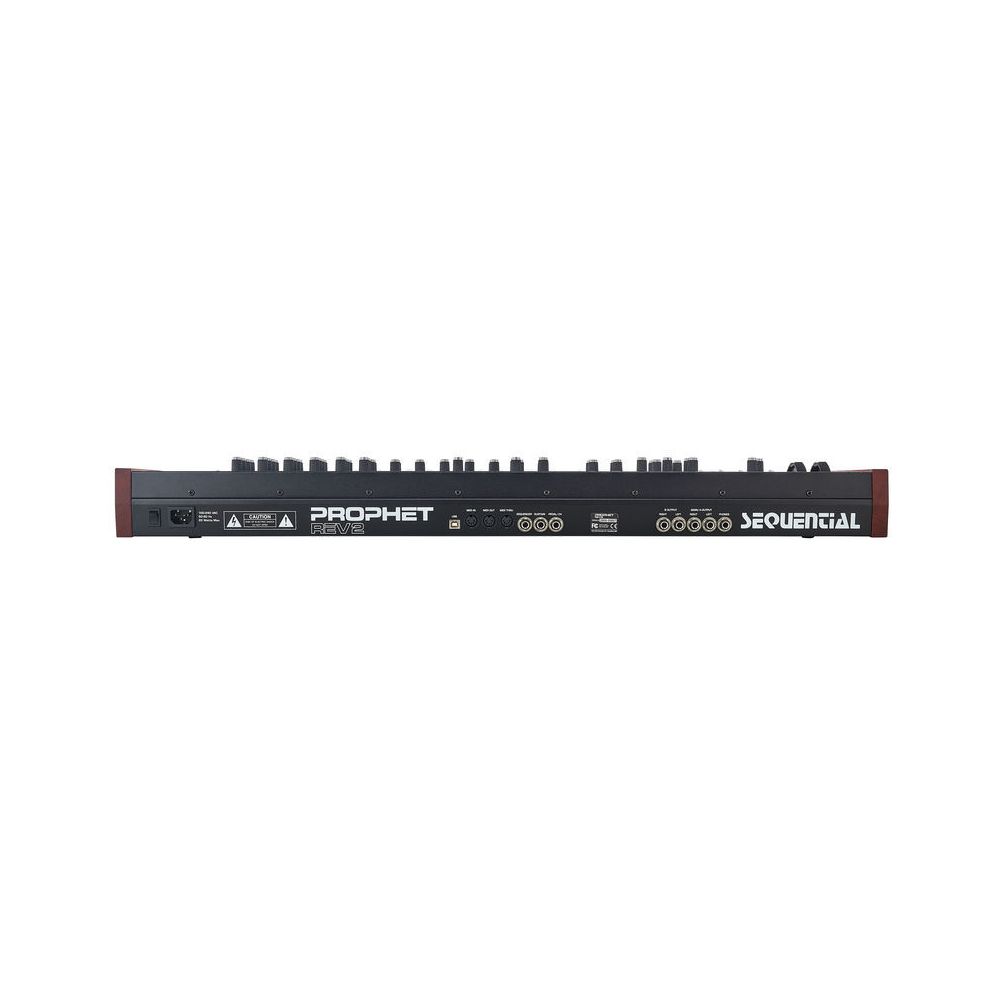

• 4 Line outputs 6.3 mm jack unbalanced (A/B L/R stereo)
• MIDI In / Out / Thru
• Sustain pedal input
• Pedal/CV input (for expression pedal or CV from 0-5 VDC)
• USB
• Headphone output: 6.3 mm jack stereo
• Dimensions (W x D x H): 892 x 322 x 96.5 mm
• Weight: 9.3 kg
• Suitable case: Art. 505441 (not included)
